RXEF050 ,Fuse - Raychem

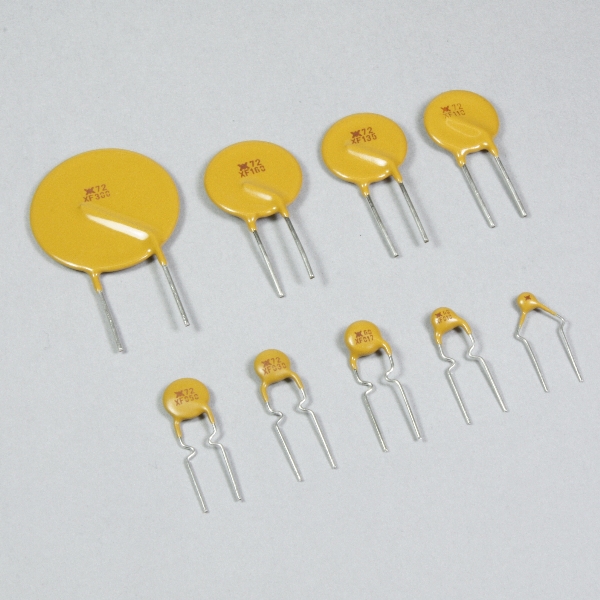

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

101 points

Part No

RXEF050
Manufacturer

Raychem
ChipWorker Part#

CW27246012
Category

Fuse
Package

Radial, Disc
Description

TE CONNECTIVITY / RAYCHEM RXEF050 PPTC Resettable Fuse, PolySwitch RXEF Series, 500mA, 1A, 72VDC, Through Hole, -40℃
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.55

Buy RXEF050

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

RXEF050 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

RXEF050 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	RXEF050
Manufacturer	Raychem
ChipWorker Part#	CW27246012
Category	Fuse
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	Radial, Disc
Operating Voltage	72 V
Resistance	1.17 Ω
Holding Current	500 mA
Trip Current	1 A
Holding Current (Max)	0.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	72 VDC
	expand all
Size-Length	13.7 mm
Size-Height	3 mm
Lead Length	7.6 mm
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The RXEF050 from TE Connectivity is a radial leaded PolySwitch resettable device. It provides engineers with more design flexibility. The higher voltage ratings allow this device to use in new applications and it is compatible with high volume electronics assembly.
Fast time to trip
Low resistance
UL, CSA and TUV approved
Hold current of 0.5A at room temperature
Maximum voltage of 72V
Maximum current of 40A
Trip current of 1A at room temperature
Maximum resistance of 1.17ohm at 20°C (1hr post trip)
Operation temperature range from -40°C to 85°C
UL94 V-0 flame retardant epoxy polymer insulation
This device is intended for protection against overcurrent or overtemperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated.
Operation in circuits with a large inductance can generate circuit voltage (Ldi/dt) above rated voltage of device.
