RY610024 - TE Connectivity

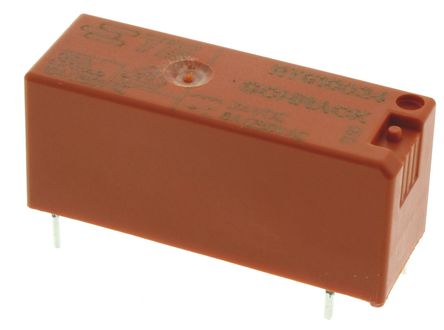

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RY610024
Manufacturer

TE Connectivity
ChipWorker Part#

CW22985600
Category

Power Relay
Description

Power Relay 24VDC 8A SPDT (( 28.5mm 10.1mm 12.3mm)) Through Hole
Documentation

Datasheet

RY610024 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

RY610024 Specifications

Attribute	Attribute Value

Part Number	RY610024
Manufacturer	TE Connectivity
ChipWorker Part#	CW22985600
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	5 Pin
Current Rating	8 A
Contact Current Rating	8 A
Coil Voltage	24 VDC
Coil Current	10.2 mA
Coil Resistance	2.35 kΩ
Coil Voltage (DC)	24 V
Coil Power	245 mW
Input Power (Max)	2 KVA
Switching Current (Max)	8 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	28.5 mm
Size-Width	12.3 mm
Size-Height	12.3 mm
Contact Material	Silver Cadmium Oxide
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536410050
ECCN Code	EAR99

Product Description

Relay, 8 A Current Rating, 5 VDC to 60 VDC Coil Voltage, PCB Mount, Single Contact
* 1 pole 8 A, 1 CO or 1 NO or 1 NC contact
* Low component height 12.3 mm
* 5 kV / 8 mm coil-contact
* Reinforced insulation
* Pinnings: 3.2 and 5 mm
* Sockets with PCB-type or screw-type terminals
* Especially suitable for resistive and inductive loads on NO and NC contacts
* Plastic materials according to IEC60335-1 (domestic appliances)
* Versions with AgNi 0.15 or AgSnO2 contact material: RoHS compliant (Directive 2002 / 95 / EC) as per product date code 0403
Power rating 223 mW. AgNio, 15, AgSnO2, AgCdO contact material. PCB or screw terminal type. UR recognized, VDE approved.
