S25FL164K0XNFI011 - Spansion

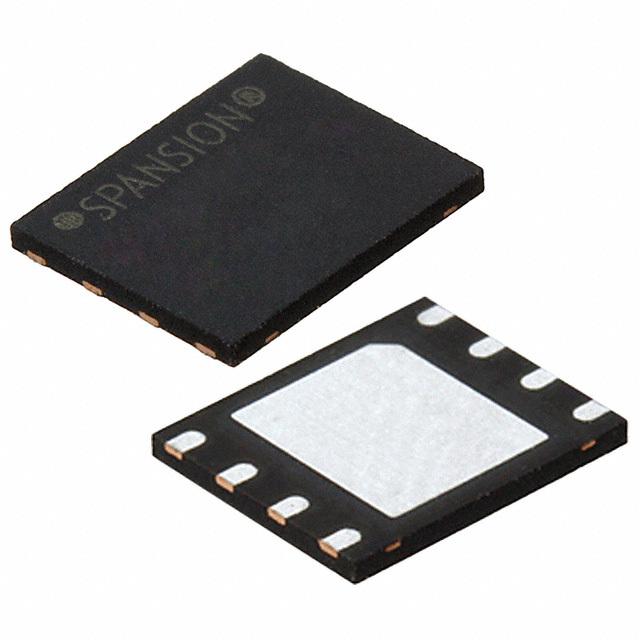

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

S25FL164K0XNFI011
Manufacturer

Spansion
ChipWorker Part#

CW86419533
Category

Flash Memory, Flash
Package

WSON-8
Description

SPANSION S25FL164K0XNFI011 Flash Memory, NOR, 64Mbit, 8M x 8Bit, 108MHz, SPI, WSON, 8Pins
Documentation

Datasheet

S25FL164K0XNFI011 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

S25FL164K0XNFI011 Specifications

Attribute	Attribute Value

Part Number	S25FL164K0XNFI011
Manufacturer	Spansion
ChipWorker Part#	CW86419533
Category	Flash Memory, Flash
Documentation	Datasheet
Number of Pins	8 Pin
Case/Package	WSON-8
Supply Voltage (DC)	2.70V (min)
Number of Positions	8 Position
Clock Speed	108 MHz
Memory Size	8000000 B
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The S25FL164K0XNFI011 is a 64Mb Flash-NOR Non-volatile Memory with SPI interface. This is a CMOS 3V flash non-volatile memory serial peripheral interface (SPI) with multi-I/O. The command subset and footprint compatible with S25FL-K, continuous and wrapped read modes and an efficient eXecute-In-place (XIP). The FL serial flash memory offers a reduced pin count for lower system cost while providing optimal read/write performance.
SPI clock polarity and phase modes 0 and 3
Serial-input page program
Programs suspend and resume
Bulk erase
Erase suspend and resume
Cycling endurance - typical 100K program-erase cycles on any sector
Typical 20 years data retention at 55°C
Software command protection
Hardware input signal protection
Lock-down until power cycle protection
OTP protection of security registers
-40 to 85°C Industrial temperature range
