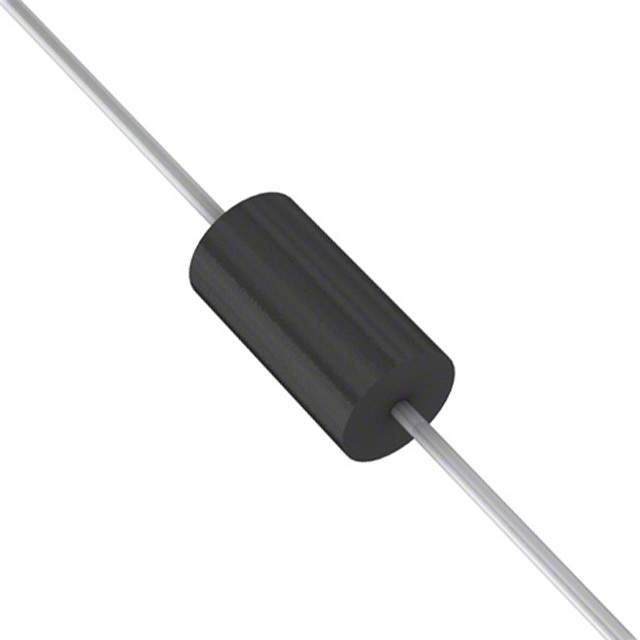

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoSA120A
-
ManufacturerLittelfuse
-
ChipWorker Part#CW96272866
-
CategoryTVS Diode
-
PackageDO-204AC-2
-
DescriptionTrans Voltage Suppressor Diode, 500W, 120V V(RWM), Unidirectional, 1Element, Silicon, DO-15, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2
-
DocumentationDatasheet
