SBAV199LT1G - ON Semiconductor

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SBAV199LT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW8545136
Category

Diode Array, TVS Diode Array
Package

SOT-23-3
Description

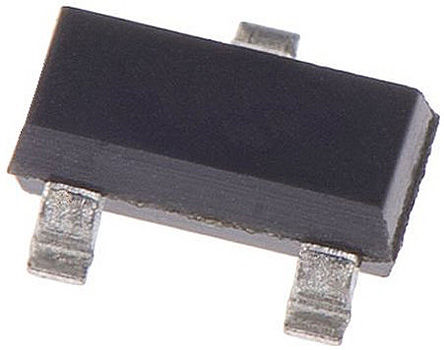

ON Semi SBAV199LT1G, Dual SMT Switching Diode, Series, 70V 715mA, 3us, 3Pin SOT-23
Documentation

Datasheet

SBAV199LT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SBAV199LT1G Specifications

Attribute	Attribute Value

Part Number	SBAV199LT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW8545136
Category	Diode Array, TVS Diode Array
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	1.25V @150mA
Power Dissipation	300 mW
Reverse recovery time	3 µs
Forward Current	215 mA
Max Forward Surge Current (Ifsm)	500 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	0.215 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	300 mW
	expand all
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.01 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The switching diode is designed for high speed switching applications. This dual diode device contains two diodes in series encapsulated in a SOT-23 surface mount package.
Features
---
|
Low Leakage Current Applications
Medium Speed Switching Times
Available in 8 mm Tape and Reel - Use BAV199LT1 to order the 7 inch/3,000 unit reel
Pb-Free Package is Available
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable
