SKHHLVA010 - ALPS Electric

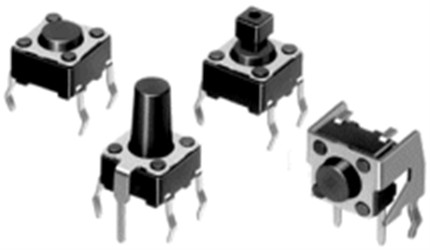

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SKHHLVA010
Manufacturer

ALPS Electric
ChipWorker Part#

CW3787396
Category

Tactile Switch, Jog Switch
Description

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Bulk
Documentation

Datasheet

SKHHLVA010 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SKHHLVA010 Specifications

Attribute	Attribute Value

Part Number	SKHHLVA010
Manufacturer	ALPS Electric
ChipWorker Part#	CW3787396
Category	Tactile Switch, Jog Switch
Documentation	Datasheet
Mounting Style	Through Hole
Voltage Rating (DC)	12 V
Number of Rows	1 Row
Contacts Type	SPST
Current Rating (Max)	0.05A @12VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Length	7.5 mm
Size-Width	9.85 mm
Size-Height	7.4 mm
Color	Gray
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536509065
ECCN Code	EAR99
HK STC License	NLR

Product Description

The SKHHLVA010 is a TACT Switch™ 6 x 6mm square snap-in type Tactile Switch features side push horizontal operating direction and dark grey stem. The part of the output terminal can also be applied as jumper leads and makes circuit design easier.
Sharp feeling type
User-friendly 6 x 6mm type
Snap-in type allows the switch to be mounted directly onto the PC board
