SKRWAEE030 - ALPS Electric

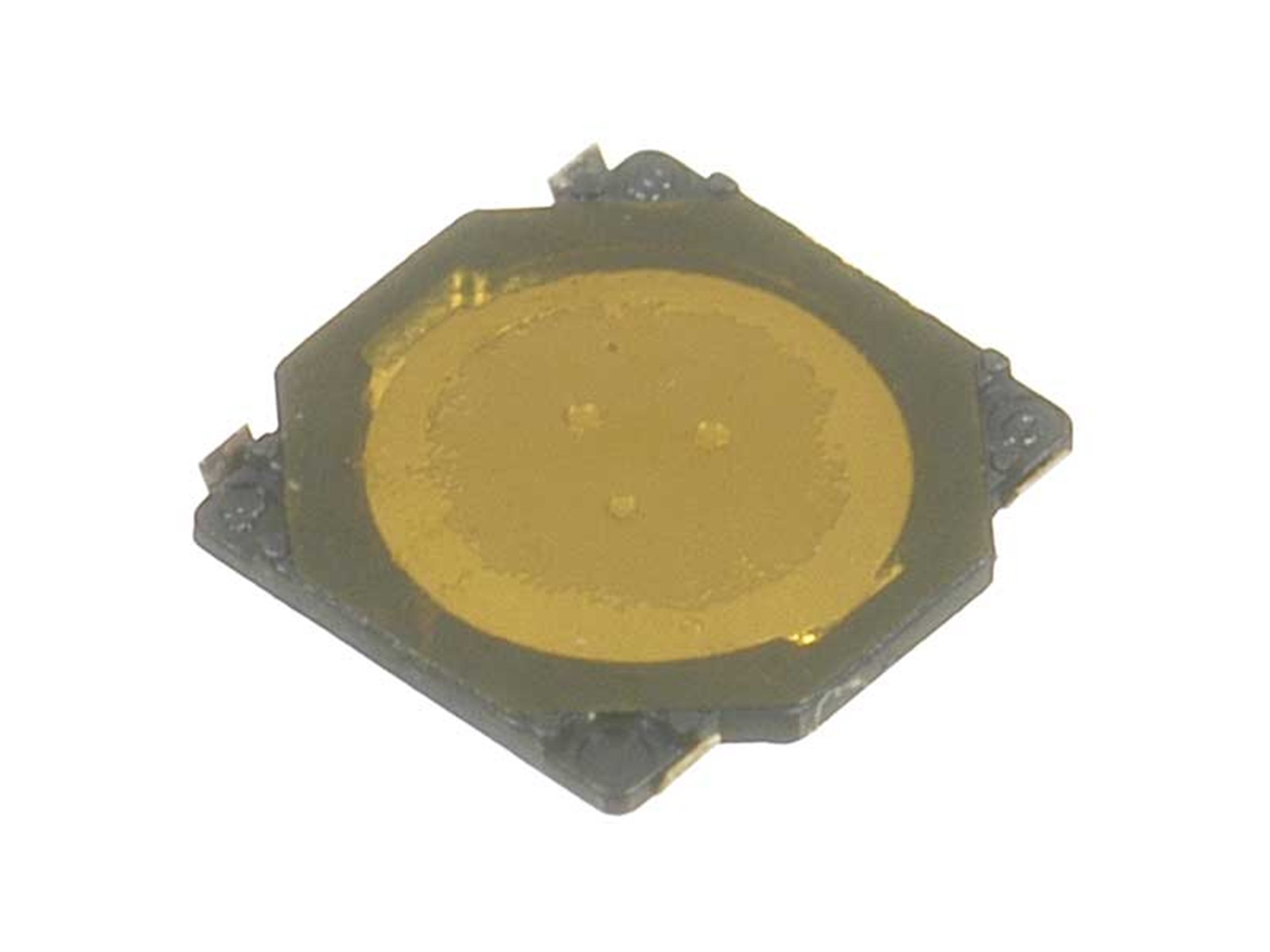

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SKRWAEE030
Manufacturer

ALPS Electric
ChipWorker Part#

CW8748915
Category

Tactile Switch, Jog Switch
Package

SMD
Description

Switch Tactile N.O. SPST Flush Button J-Bend 0.05A 12VDC 1.57N SMD T/R
Documentation

Datasheet

SKRWAEE030 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SKRWAEE030 Specifications

Attribute	Attribute Value

Part Number	SKRWAEE030
Manufacturer	ALPS Electric
ChipWorker Part#	CW8748915
Category	Tactile Switch, Jog Switch
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	12 V
Current Rating	50 mA
Current Rating (Max)	0.05 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	12 VDC
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	100 mΩ
	expand all
Size-Length	3.7 mm
Size-Width	3.7 mm
Size-Height	3.5 mm
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509065
ECCN Code	EAR99
HK STC License	NLR

Product Description

Switch Tactile N.O. SPST Flush Button J-Bend 0.05A 12VDC 1.57N SMD Embossed T/R
