SM351LT ,Hall Effect Sensor - Honeywell

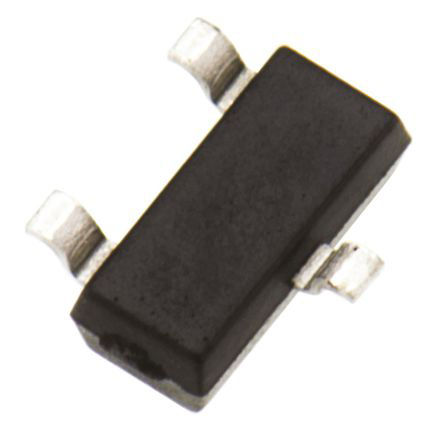

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
201 points
-
Part NoSM351LT
-
ManufacturerHoneywell
-
ChipWorker Part#CW290204
-
CategoryHall Effect Sensor
-
PackageSOT-23-3
-
DescriptionMagnetic Sensors: Magnetoresistive (MR) Sensor ICs, Nanopower Series, High Sensitivity (7G typical operate, 11G maximum operate), Omnipolar Sensing, 1.65VDC to 5.5VDC, Operating Temperature Range -40℃ to 85℃ [-40 °F to 185 °F], SOT-23 Package, Tape and 178mm [7in] Reel (3000 Units per Reel)
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие18049 pcs In Stock
-
Estimated Price$ 0.19
Payment Methods and Delivery
{{ estimate }}
Buy SM351LT
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
SM351LT Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
SM351LT Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | SM351LT | |
| Manufacturer | Honeywell | |
| ChipWorker Part# | CW290204 | |
| Category | Hall Effect Sensor | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Number of Pins | 3 Pin | |
| Case/Package | SOT-23-3 | |
| Supply Voltage (DC) | 1.65V (min) | |
| Output Voltage | 0.03 V | |
| Output Current | 360 nA | |
| Number of Positions | 3 Position | |
| Output Voltage (Max) | 0.15 V | |
| Output Current (Max) | 150 µA | |
| Operating Temperature (Max) | 85 ℃ | |
| Operating Temperature (Min) | -40 ℃ | |
| Supply Voltage | 1.65V ~ 5.5V | |
| Supply Voltage (Max) | 5.5 V | |
| Supply Voltage (Min) | 1.65 V | |
| expand all | ||
| Size-Length | 2.9 mm | |
| Size-Width | 1.6 mm | |
| Size-Height | 1.2 mm | |
| Operating Temperature | -40℃ ~ 85℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tape & Reel (TR) | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2014/06/16 | |
| HTS Code | 8542390000 | |
| ECCN Code | EAR99 |
Similar & Replacement Parts
Similar products
Product Description
- The SM351LT is a Nanopower series magnetoresistive (MR) sensor IC in 3 pin SOT-23 package. This ultra sensitive device is designed to accommodate wide range of applications with large air gaps, small magnetic fields and low power requirements. The sensor IC responds to either north or south pole applied in a direction parallel to sensor. The SM351LT does not require magnet polarity to be identified by simplifying installation and potentially reducing system cost. This sensor uses very low average current consumption and push pull output which does not require a pull up resistor. It can operate from low supply voltage of 1.65V and is energy efficient.
- High sensitivity of 7G (typical) and 11G (maximum)
- Average current of 360nA
- Supply voltage range from 1.65VDC to 5.5VDC
- Omni-polar sensing, activates with either pole from magnet
- Operating temperature range from -40°C to 85°C (-40°F to 185°F)
- Push pull output, does not require external pull up resistor
- Non chopper stabilized design
- Electrostatic sensitive device (ESD), do not open or handle except at static work station.
- Do not use this product as safety or emergency stop device or in any other application where failure of product could result in personal injury.
