SM6T22A - ST Microelectronics

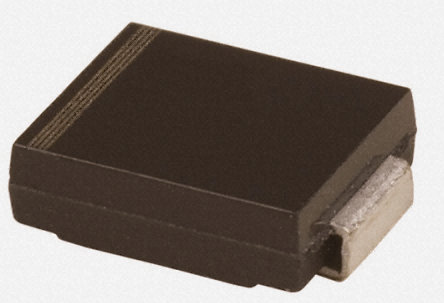

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SM6T22A
Manufacturer

ST Microelectronics
ChipWorker Part#

CW4964596
Category

TVS Diode
Package

DO-214AA
Description

SMB 18.8V 600W
Documentation

Datasheet

SM6T22A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SM6T22A Specifications

Attribute	Attribute Value

Part Number	SM6T22A
Manufacturer	ST Microelectronics
ChipWorker Part#	CW4964596
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	22.0 V
Operating Voltage	22 V
Power Rating	1.50 kW
Breakdown Voltage	22 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	39.3 V
Max Repetitive Reverse Voltage (Vrrm)	18.8V
Test Current	1 mA
Peak Pulse Power	600 W
Min Breakdown Voltage	20.9 V
Reverse Breakdown Voltage	20.9 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	-55℃ ~ 150℃
	expand all
Size-Length	4.6 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The SM6T22A is an unidirectional Transil™ ESD Protection Device designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883, method 3015 and electrical over stress according to IEC 61000-4-4 and 5. The device is generally used against surges below 600W (10/1000µs). Planar technology makes these devices suitable for high-end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
6.8 to 220V Breakdown voltage range
0.2µA at 25°C and 1µA at 85°C Low leakage current
515W (10/1000µs) High power capability at Tj max
-55 to 150°C Operating junction temperature range
