SMAJ85A - Littelfuse

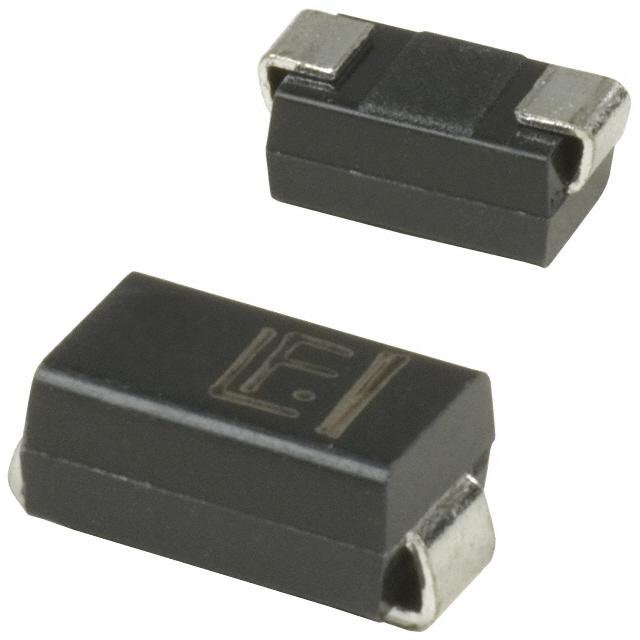

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMAJ85A
Manufacturer

Littelfuse
ChipWorker Part#

CW3342145
Category

TVS Diode
Package

DO-214AC
Description

DIODE TVS 85V 400W UNI 5% SMA
Documentation

Datasheet

SMAJ85A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMAJ85A Specifications

Attribute	Attribute Value

Part Number	SMAJ85A
Manufacturer	Littelfuse
ChipWorker Part#	CW3342145
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	8.50 V
Power Rating	400 W
Breakdown Voltage	99.2 V
Number of Circuits	1 Circuit
Power Dissipation	400 W
Clamping Voltage	137 V
Test Current	1 mA
Peak Pulse Power	400 W
Min Breakdown Voltage	94.4 V
Reverse Breakdown Voltage	94.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	5.28 mm
Size-Width	2.79 mm
Size-Height	2.29 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

137V Clamp 2.9A Ipp Tvs Diode Surface Mount DO-214AC (SMA)
