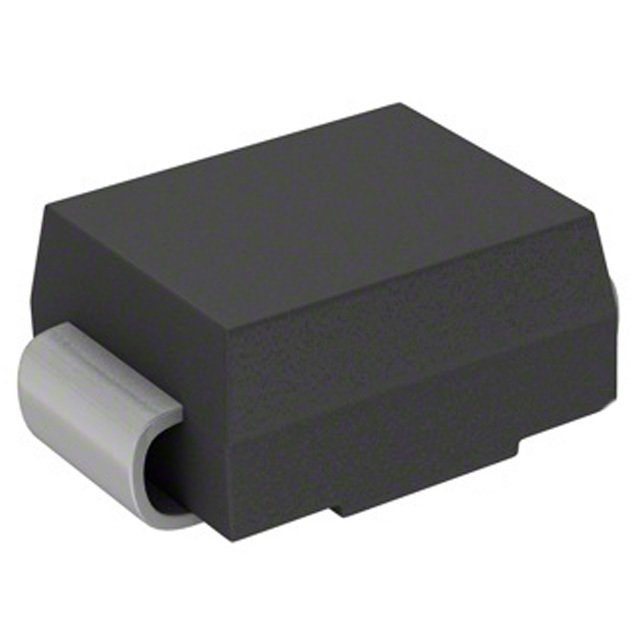

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMBJ14
Manufacturer

Littelfuse
ChipWorker Part#

CW152113309
Category

TVS Diode
Package

DO-214AA
Description

Diode TVS Single Uni-Dir 14V 600W 2Pin SMB T/R
Documentation

Datasheet

SMBJ14 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMBJ14 Specifications

Attribute	Attribute Value

Part Number	SMBJ14
Manufacturer	Littelfuse
ChipWorker Part#	CW152113309
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	14.0 V
Power Rating	600 W
Breakdown Voltage	15.6 V
Number of Circuits	1 Circuit
Clamping Voltage	23.2 V
Test Current	1 mA
Peak Pulse Power	600 W
Min Breakdown Voltage	14.76 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	5.59 mm
Size-Width	3.94 mm
Size-Height	2.44 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
