SMCJ33CA - Littelfuse

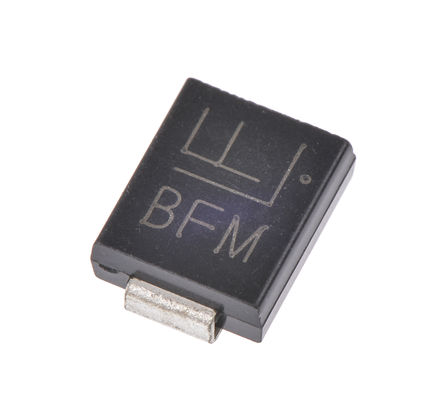

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMCJ33CA
Manufacturer

Littelfuse
ChipWorker Part#

CW1340933
Category

TVS Diode
Package

DO-214AB
Description

Trans Voltage Suppressor Diode, 1500W, 33V V(RWM), Bidirectional, 1Element, Silicon, DO-214AB, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMCJ, 2Pin
Documentation

Datasheet

SMCJ33CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMCJ33CA Specifications

Attribute	Attribute Value

Part Number	SMCJ33CA
Manufacturer	Littelfuse
ChipWorker Part#	CW1340933
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	33.0 V
Capacitance	1200 pF
Power Rating	600 W
Breakdown Voltage	38.65 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1.5 kW
Clamping Voltage	53.3 V
Test Current	1 mA
Max Breakdown Voltage	40.6 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	36.7 V
Reverse Breakdown Voltage	36.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	7.11 mm
Size-Width	6.22 mm
Size-Height	2.417 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The SMCJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
1500W Peak pulse power capability at 10/1000µs waveform
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
0.05% Repetition rate (duty cycle)
<1ps from 0V to V(BR) Minimum fast response time
<1µA above 10V Current IR
Available in unidirectional and bidirectional
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
-65 to 150°C Operating temperature range
