SMCJ58A - Littelfuse

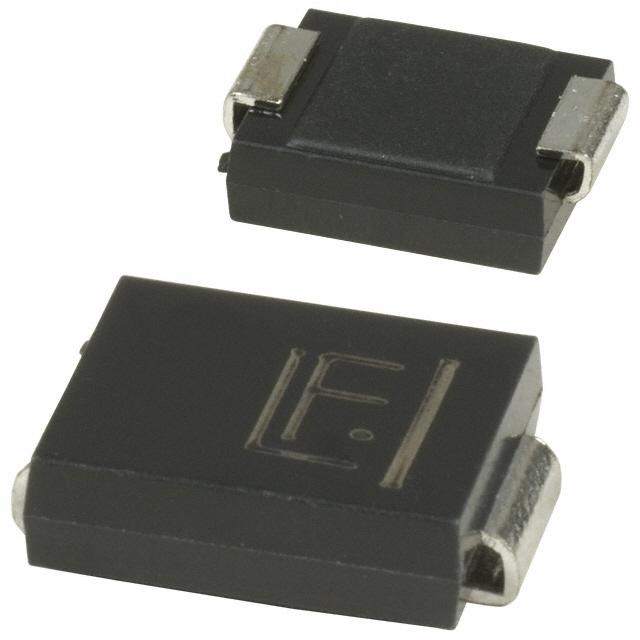

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMCJ58A
Manufacturer

Littelfuse
ChipWorker Part#

CW1412800
Category

TVS Diode
Package

DO-214AB
Description

DIODE TVS 58V 1500W UNI 5% SMC
Documentation

Datasheet

SMCJ58A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMCJ58A Specifications

Attribute	Attribute Value

Part Number	SMCJ58A
Manufacturer	Littelfuse
ChipWorker Part#	CW1412800
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AB
Voltage Rating (DC)	58.0 V
Power Rating	1.50 kW
Breakdown Voltage	67.8 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	1.5 kW
Clamping Voltage	93.6 V
Test Current	1 mA
Max Breakdown Voltage	71.2 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	64.4 V
Reverse Breakdown Voltage	64.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	8.13 mm
Size-Width	6.22 mm
Size-Height	2.62 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

FEATURES
• RoHS compliant
• For surface mounted applications in order to optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition Rate(duty cycle): 0.05%
• Fast response time: typically less than 1.0ps from 0 Volts to BV min.
• Typical IR less than 1mA above 10V
• High temperature soldering: 250˚C/10 seconds at terminals
• Plastic package has Underwriters Laboratory Flammability 94V-O
