SMMSD701T1G - ON Semiconductor

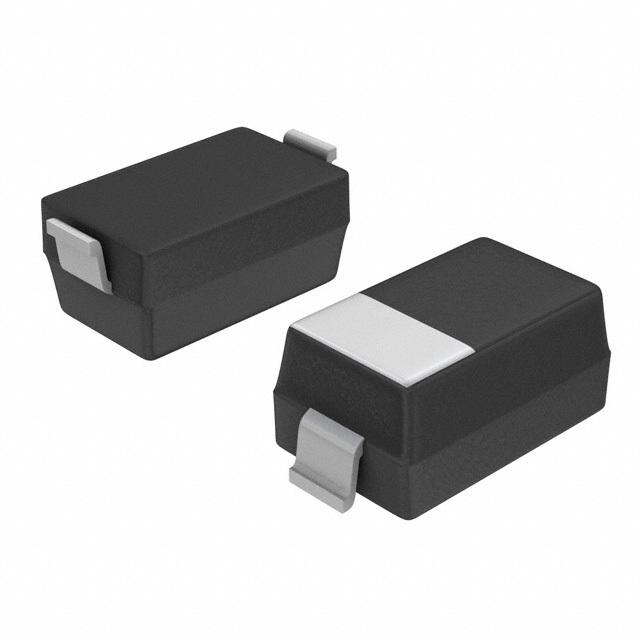

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SMMSD701T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW61763514
Category

Schottky Diode
Package

SOD-123
Description

Diode Schottky 30V 0.2A Automotive 2Pin SOD-123 T/R
Documentation

Datasheet

SMMSD701T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SMMSD701T1G Specifications

Attribute	Attribute Value

Part Number	SMMSD701T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW61763514
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Forward Voltage	1V @10mA
Forward Current	200 mA
Maximum Forward Voltage (Max)	1V @10mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	225 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Diode Schottky 70V 200mA (DC) Surface Mount SOD-123
