SN65175D - TI

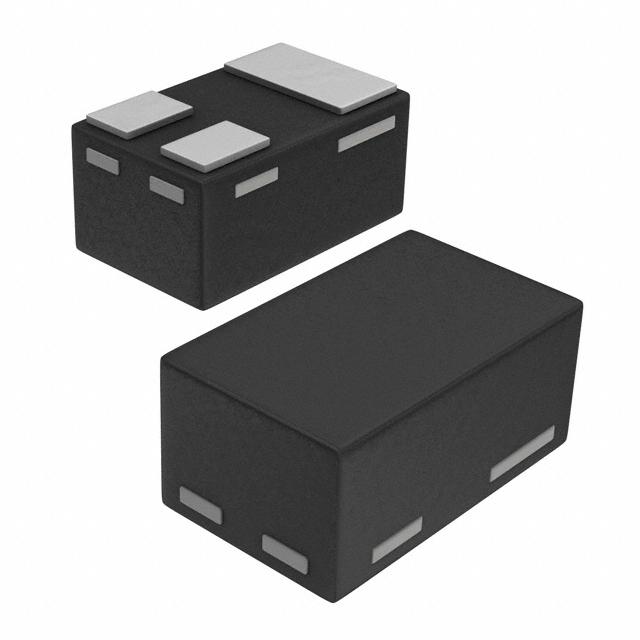

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN65175D
Manufacturer

TI
ChipWorker Part#

CW45437897
Category

Interface IC, Interface Controller
Package

SOIC-16
Description

0/4 Receiver RS422, RS423, RS485 16-SOIC
Documentation

Datasheet

SN65175D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN65175D Specifications

Attribute	Attribute Value

Part Number	SN65175D
Manufacturer	TI
ChipWorker Part#	CW45437897
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.25V (max)
Supply Current	70 mA
Data Rate	10.0 Mbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
	expand all
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The SN65175D is a quadruple monolithic differential Line Receiver with 3-state outputs. It is designed to meet the requirements of ANSI standards EIA/TIA-422-B, RS-423-B, RS-485 and several ITU recommendations. These standards are for balanced multipoint bus transmission at rates up to 10Mbps. Each of the two pairs of receivers has a common active-high enable. The receiver features high input impedance, input hysteresis for increased noise immunity and input sensitivity of ±200mV over a common-mode input voltage range of ±12V. The SN65175 is designed for optimum performance when used with the SN75172 or SN75174 quadruple differential line drivers.
Designed for multi-point bus transmission on long bus lines in noisy environments
Low-power requirements
Operate from a single 5V supply
±200mV Input sensitivity
50mV Typical input hysteresis
12kR Minimum high input impedance
2kV HBM ESD
32 Number of nodes
Green product and no Sb/Br
