SN65HVD23D - TI

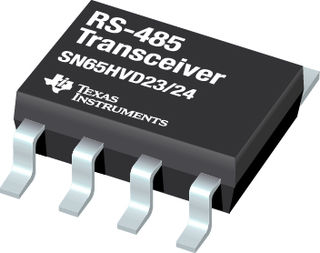

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN65HVD23D
Manufacturer

TI
ChipWorker Part#

CW7249069
Category

Interface IC, Interface Controller
Package

SOIC-8
Description

Single Transmitter/Receiver RS-485 8Pin SOIC Tube
Documentation

Datasheet

SN65HVD23D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN65HVD23D Specifications

Attribute	Attribute Value

Part Number	SN65HVD23D
Manufacturer	TI
ChipWorker Part#	CW7249069
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Supply Current	11 mA
Number of Positions	8 Position
Data Rate	25.0 Mbps
Drivers Per Package	1
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN65HVD23D is a RS-485 Extended Common-mode Transceiver for use with electrical power inverters. The transceiver in the HVD2x family offer performance far exceeding typical RS-485 devices. In addition to meeting all requirements of the TIA/EIA-485-A standard, the HVD2x family operates over an extended range of common-mode voltage and has features such as high ESD protection, wide receiver hysteresis and failsafe operation. This family of devices is ideally suited for long-cable networks and other applications where the environment is too harsh for ordinary transceivers. This device is designed for bidirectional data transmission on multipoint twisted-pair cables. Example applications are digital motor controllers, remote sensors and terminals. This device combines a 3-state differential driver and a differential receiver, which operate from a single 5V power supply.
Common-mode voltage range (-20 to 25V) more than doubles TIA/EIA-485 requirement
Reduced unit-load for up to 256 nodes
Bus I/O protection to over 16kV HBM
Failsafe receiver (bus open, bus shorted and bus idle)
Receiver equalization extends cable length, signalling rate
1µA Maximum low standby supply current
More than 100mV receiver hysteresis
25Mbps Maximum signalling rate
Green product and no Sb/Br
