SN65LVDS32PW - TI

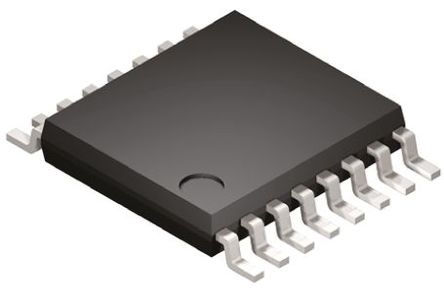

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN65LVDS32PW
Manufacturer

TI
ChipWorker Part#

CW6600283
Category

Interface IC, Interface Controller
Package

TSSOP-16
Description

LVDS PHY (<800Mbps) Quad LVDS Receiver LVDS Receiver 100Mbps 16Pin TSSOP Tube
Documentation

Datasheet

SN65LVDS32PW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN65LVDS32PW Specifications

Attribute	Attribute Value

Part Number	SN65LVDS32PW
Manufacturer	TI
ChipWorker Part#	CW6600283
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	3.00V (min)
Supply Current	18.0 mA
Number of Positions	16 Position
Power Dissipation	774 W
Data Rate	100 Mbps
Input Current (Min)	20 μA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	774 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN65LVDS32PW is a quad differential Line Receiver implements the electrical characteristics of low-voltage differential signaling (LVDS). This signaling technique lowers the output voltage levels of 5V differential standard levels (such as EIA/TIA-422B) to reduce the power, increase the switching speed and allow operation with a 3.3V supply rail. Any of the differential receivers provides a valid logical output state with a ±100mV differential input voltage within the input common-mode voltage range. The input common-mode voltage range allows 1V of ground potential difference between two LVDS nodes. The intended application of this device and signaling technique is both point-to-point and multidrop (one driver and multiple receivers) data transmission over controlled impedance media of approximately 100R. The transmission media may be printed-circuit board traces, backplanes or cables.
Low-voltage TTL (LVTTL) logic output levels
Pin-compatible with AM26LS32, MC3486 and µA9637
Open-circuit failsafe
Cold sparing for space and high-reliability applications requiring redundancy
Bus-terminal ESD protection exceeds 8kV
±100mV Maximum differential input thresholds
2.1ns Typical propagation delay time
Power dissipation 60mW typical per receiver at maximum data rate
Green product and no Sb/Br
