SN74ABT16244ADL - TI

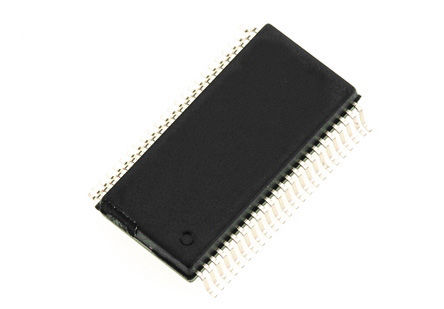

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74ABT16244ADL
Manufacturer

TI
ChipWorker Part#

CW20688437
Category

Logic Control, Logic Gate IC
Package

SSOP-48
Description

Buffer/Line Driver 16CH Non-Inverting 3-ST BiCMOS 48Pin SSOP Tube
Documentation

Datasheet

SN74ABT16244ADL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

SN74ABT16244ADL Specifications

Attribute	Attribute Value

Part Number	SN74ABT16244ADL
Manufacturer	TI
ChipWorker Part#	CW20688437
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	SSOP-48
Supply Voltage (DC)	4.50V ~ 5.50V
Number of Outputs	16 Output
Output Current	64.0 mA
Number of Circuits	16 Circuit
Number of Channels	4 Channel
Number of Positions	48 Position
Number of Bits	16 Bit
Propagation Delay Max (tpd)	4.10 ns
Voltage Nodes	5.00 V
Output Current Drive	-500 µA
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	15.88 mm
Size-Width	7.49 mm
Size-Height	2.59 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN74ABT16244ADL is a 16-bit Buffer/Driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. This device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. This device provides true outputs and symmetrical OE inputs. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN74ABT16244A is characterized for operation from -40 to 85°C.
State-of-the-Art EPIC-IIB™ BiCMOS design significantly reduces power dissipation
Distributed VCC and GND pin configuration minimizes high-speed switching noise
Flow-through architecture optimizes PCB layout
High-drive outputs
Latch-up performance exceeds 500mA per JESD 70
Typical VOLP (output ground bounce) <1V at VCC = 5V, TA = 25°C
Green product and no Sb/Br
