SN74ABT244ADW - TI

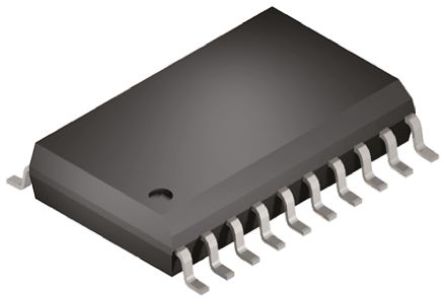

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74ABT244ADW
Manufacturer

TI
ChipWorker Part#

CW14260075
Category

Logic Controller, Logic IC
Package

SOIC-20
Description

Buffer/Line Driver 8CH Non-Inverting 3-ST BiCMOS 20Pin SOIC Tube
Documentation

Datasheet

SN74ABT244ADW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74ABT244ADW Specifications

Attribute	Attribute Value

Part Number	SN74ABT244ADW
Manufacturer	TI
ChipWorker Part#	CW14260075
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	4.50V ~ 5.50V
Number of Outputs	8 Output
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Propagation Delay Max (tpd)	4.60 ns
Voltage Nodes	5.00 V
Quiescent Current	24.0 mA
Output Current Drive	-500 µA
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	12.8 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN74ABT244ADW is an octal Buffer and Line Driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers and bus-oriented receivers and transmitters. This device provides the choice of selected combinations of inverting and non-inverting outputs, symmetrical active-low output-enable (OE)\ inputs and complementary OE and OE\ inputs. The SN74ABT244A is organized as two 4-bit buffer/line drivers with separate OE\ inputs. When OE\ is low, the devices pass non-inverted data from the A inputs to the Y outputs. When OE\ is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN74ABT244A is characterized for operation from -40 to 85°C.
State-of-the-Art EPIC-IIB™ BiCMOS design significantly reduces power dissipation
High-drive outputs
Latch-up performance exceeds 500mA per JEDEC standard JESD-17
Typical VOLP (output ground bounce) <1V at VCC = 5V, TA = 25°C
Green product and no Sb/Br
