SN74AHCT14PW - TI

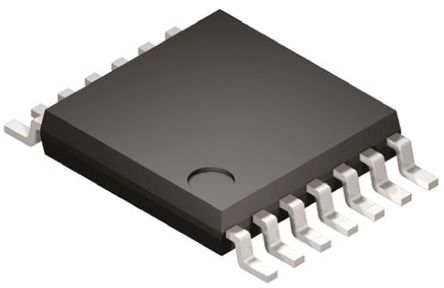

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74AHCT14PW
Manufacturer

TI
ChipWorker Part#

CW10155729
Category

Logic Control, Logic Gate IC
Package

TSSOP-14
Description

TEXAS INSTRUMENTS SN74AHCT14PW Inverter, 74AHCT14, 1Input, 8mA, 4.5V to 5.5V, TSSOP-14
Documentation

Datasheet

SN74AHCT14PW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74AHCT14PW Specifications

Attribute	Attribute Value

Part Number	SN74AHCT14PW
Manufacturer	TI
ChipWorker Part#	CW10155729
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	4.50V ~ 5.50V
Output Current	8 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	12.0 ns
Voltage Nodes	5.00 V
Number of Gates	6 Gate
Output Current Drive	-1.00 mA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN74AHCT14PW is a Hex Schmitt-trigger Inverter contains six independent circuits. This device perform the Boolean function Y = A\\.
Inputs are TTL-voltage compatible
Latch-up performance exceeds 250mA per JESD 17
ESD protection exceeds JESD 22
