SN74CBTD3861PWR - TI

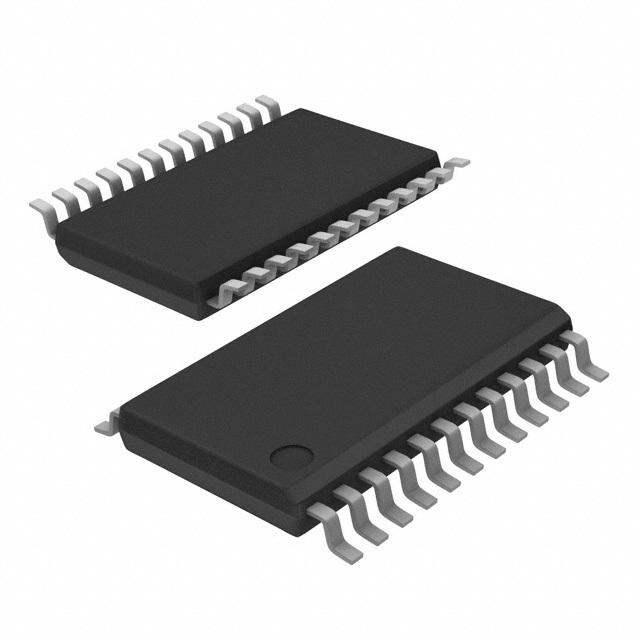

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74CBTD3861PWR
Manufacturer

TI
ChipWorker Part#

CW21525630
Category

Logic Controller, Logic IC
Package

TSSOP-24
Description

Bus Switch 1Element CMOS 10IN 24Pin TSSOP T/R
Documentation

Datasheet

SN74CBTD3861PWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74CBTD3861PWR Specifications

Attribute	Attribute Value

Part Number	SN74CBTD3861PWR
Manufacturer	TI
ChipWorker Part#	CW21525630
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Supply Voltage (DC)	4.50V (min)
Output Current	64 mA
Contacts Type	SPST
Supply Current	250 mA
Number of Positions	24 Position
Number of Bits	10 Bit
Propagation Delay Max (tpd)	350 ps
Polarity	Non-Inverting
Bandwidth	20.0 MHz
Number of Inputs	10 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN74CBTD3861PWR is a 10-bit FET Bus Switch with level shifting. It provides ten bits of high-speed TTL-compatible bus switching. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay. A diode to VCC is integrated on the die to allow for level shifting from 5V signals at the device inputs to 3.3V signals at the device outputs. The device is organized as one 10-bit switch with a single OE\ input. When OE\ is low, the switch is on and port A is connected to port B. When OE\ is high, the switch is open and the high-impedance state exists between the two ports.
TTL-compatible Input levels
5R Switch connection between two ports
Green product and no Sb/Br
