SN74CBTLV3257D - TI

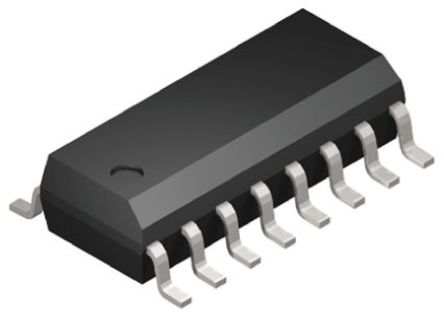

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74CBTLV3257D
Manufacturer

TI
ChipWorker Part#

CW8517921
Category

Logic Controller, Logic IC
Package

SOIC-16
Description

Multiplexer/Demultiplexer Bus Switch 1Element CMOS 8IN 16Pin SOIC Tube
Documentation

Datasheet

SN74CBTLV3257D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74CBTLV3257D Specifications

Attribute	Attribute Value

Part Number	SN74CBTLV3257D
Manufacturer	TI
ChipWorker Part#	CW8517921
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.30V ~ 3.60V
Number of Outputs	4 Output
Contacts Type	SPDT
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Voltage Nodes	3.30 V, 2.50 V
Bandwidth	200 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	expand all
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The SN74CBTLV3257D is a 4-bit 1-of-2 high-speed FET Multiplexer/Demultiplexer disabled when the OE\ input is high. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay. The select (S) input controls the data flow. It is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.
Rail-to-rail switching on data I/O ports
Ioff Supports partial-power-down mode operation
Latch-up performance exceeds 100mA per JESD 78, class II
5R Switch connection between two ports
ESD Protection exceeds JESD 22
Green product and no Sb/Br
