SN74HC14DT - TI

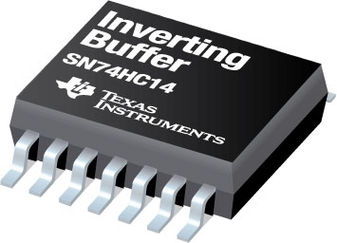

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74HC14DT
Manufacturer

TI
ChipWorker Part#

CW39091414
Category

Logic Control, Logic Gate IC
Package

SOIC-14
Description

TEXAS INSTRUMENTS SN74HC14DT Inverter, Schmitt Trigger, 74HC14, 1Input, 5.2mA, 2V to 6V, SOIC-14
Documentation

Datasheet

SN74HC14DT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74HC14DT Specifications

Attribute	Attribute Value

Part Number	SN74HC14DT
Manufacturer	TI
ChipWorker Part#	CW39091414
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	2.00V ~ 6.00V
Output Current	5.2 mA
Number of Circuits	6 Circuit
Number of Bits	6 Bit
Propagation Delay Max (tpd)	26.0 ns
Voltage Nodes	6.00 V, 5.00 V, 2.00 V
Number of Gates	6 Gate
Output Current Drive	-1.00 mA
Number of Inputs	6 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The SN74HC14DT inverting Schmitt trigger, developed by Texas Instruments, is a great way to remove noise from an analog signal and essentially convert it into a digital signal. With a Schmitt trigger output, this is power management at its best. This inverting Schmitt trigger has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
