SN74HC86
Manufacturer

TI
ChipWorker Part#

CW435415666
Package

SO-14
Description

Quadruple 2Input Exclusive-OR Gates
Documentation

Datasheet

SN74HC86 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74HC86 Specifications

Attribute	Attribute Value

Part Number	SN74HC86
Manufacturer	TI
ChipWorker Part#	CW435415666
Documentation	Datasheet
Case/Package	SO-14
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

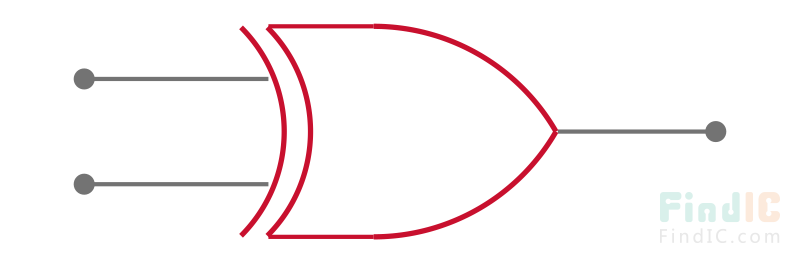

These devices contain four independent 2-input exclusive-OR gates. They perform the Boolean function Y = A B or Y = A\B + A(B\\) in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 20-µA Max ICC
Typical tpd = 10 ns
±4-mA Output Drive at 5 V
Low Input Current of 1 µA Max
True Logic
