SN74LS04D - TI

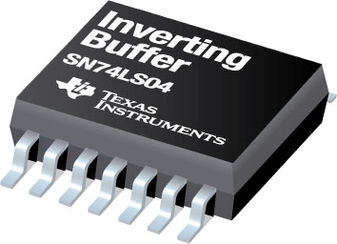

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LS04D
Manufacturer

TI
ChipWorker Part#

CW2552359
Category

Logic Control, Logic Gate IC
Package

SOIC-14
Description

Inverter, 74LS04, 1Input, 8mA, 4.75V to 5.25V, SOIC-14
Documentation

Datasheet

SN74LS04D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LS04D Specifications

Attribute	Attribute Value

Part Number	SN74LS04D
Manufacturer	TI
ChipWorker Part#	CW2552359
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	4.75V ~ 5.25V
Output Current	8 mA
Number of Circuits	6 Circuit
Number of Channels	6 Channel
Number of Positions	14 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	15.0 ns
Voltage Nodes	5.00 V
Number of Gates	6 Gate
Output Current Drive	-50.0 µA
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	8.65 mm
Size-Width	3.9 mm
Size-Height	1.58 mm
Weight	0.0020701957136 kg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The SN74LS04D is a Hexagonal Inverter with six independent inverters and LS technology. The inverter featuring catalogue rating.
TTL input and CMOS output
