SN74LS74AD - TI

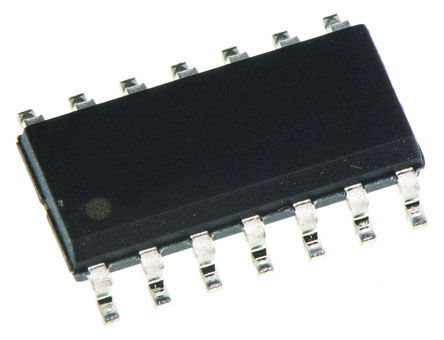

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LS74AD
Manufacturer

TI
ChipWorker Part#

CW2525908
Category

Flip Flop IC
Package

SOIC-14
Description

IC: digital; D flip-flop; Channels:2; 74LS; SMD; SO14; Package: tube
Documentation

Datasheet

SN74LS74AD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LS74AD Specifications

Attribute	Attribute Value

Part Number	SN74LS74AD
Manufacturer	TI
ChipWorker Part#	CW2525908
Category	Flip Flop IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Frequency	25 MHz
Supply Voltage (DC)	4.75V ~ 5.25V
Number of Outputs	1 Output
Output Current	8 mA
Supply Current	4.00 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	14 Position
Clock Speed	33 MHz
Number of Bits	2 Bit
Propagation Delay Max (tpd)	40.0 ns
Polarity	Non-Inverting, Inverting
Voltage Nodes	5.00 V
Output Current Drive	-50.0 µA
Number of Inputs	1 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	8.65 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The SN74LS74AD is a dual positive-edge-triggered D-type Flip-flop with preset and clear. This device contains two independent D-type positive-edge-triggered flip-flops. A low level at the preset or clear inputs sets or resets the outputs regardless of the levels of the other inputs. When preset and clear are inactive (high), data at the D input meeting the setup time requirements are transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold time interval, data at the D input may be changed without affecting the levels at the outputs.
