SN74LVC1G07DPWR - TI

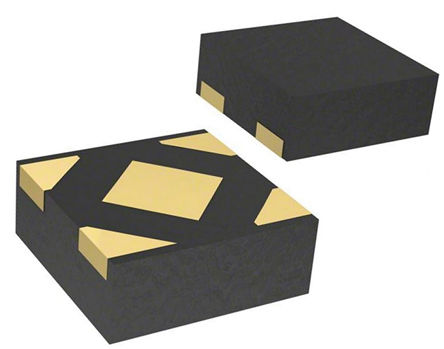

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LVC1G07DPWR
Manufacturer

TI
ChipWorker Part#

CW41546435
Category

Buffer Gate IC
Package

X2SON-4
Description

Buffer/Driver 1CH Non-Inverting Open Drain CMOS 4Pin X2SON T/R
Documentation

Datasheet

SN74LVC1G07DPWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LVC1G07DPWR Specifications

Attribute	Attribute Value

Part Number	SN74LVC1G07DPWR
Manufacturer	TI
ChipWorker Part#	CW41546435
Category	Buffer Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	X2SON-4
Supply Voltage (DC)	1.65V (min)
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Bits	1 Bit
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	0.85 mm
Size-Width	0.85 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation.
The output of the SN74LVC1G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA.
The SN74LVC1G07 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm.
