SN74LVC1G97DSFR - TI

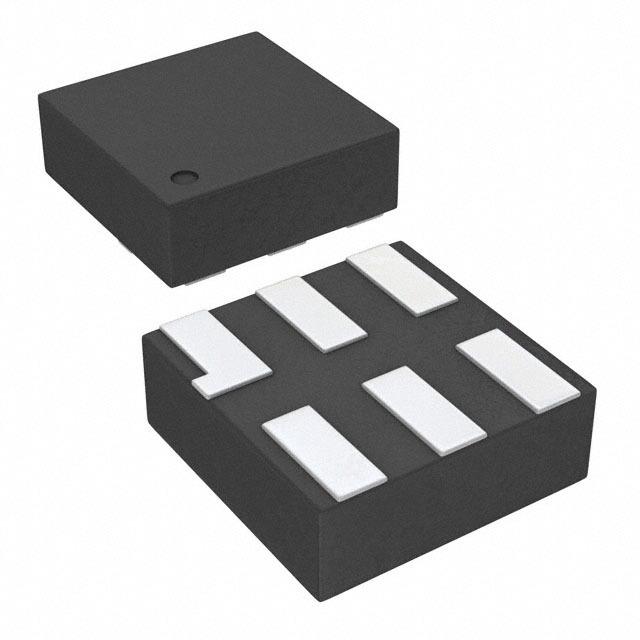

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN74LVC1G97DSFR
Manufacturer

TI
ChipWorker Part#

CW14359240
Category

Logic Control, Logic Gate IC
Package

XFDFN-6
Description

Multi Function Gate 1Element 2IN CMOS 6Pin USON T/R
Documentation

Datasheet

SN74LVC1G97DSFR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN74LVC1G97DSFR Specifications

Attribute	Attribute Value

Part Number	SN74LVC1G97DSFR
Manufacturer	TI
ChipWorker Part#	CW14359240
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	XFDFN-6
Supply Voltage (DC)	1.65V ~ 5.50V
Number of Outputs	1 Output
Output Current	32 mA
Number of Circuits	1 Circuit
Number of Positions	6 Position
Number of Bits	1 Bit
Propagation Delay Max (tpd)	5.10 ns
Voltage Nodes	5.00 V, 3.30 V, 2.50 V, 1.80 V
Number of Gates	1 Gate
Number of Inputs	3 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The SN74LVC1G97 device features configurable multiple functions. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. All inputs can be connected to VCC or GND.
This configurable multiple-function gate is designed for 1.65-V to 5.5-V VCC operation.
This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals.
NanoFree package technology is a major break-through in IC packaging concepts, using the die as the package.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
