SN75HVD1176D - TI

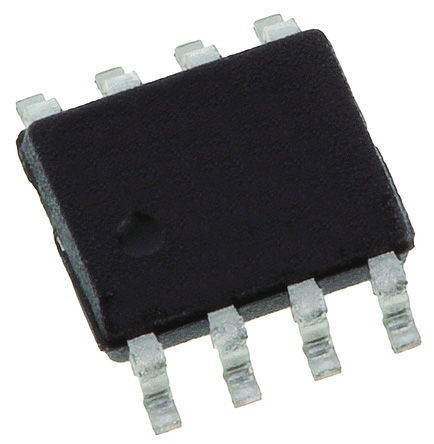

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN75HVD1176D
Manufacturer

TI
ChipWorker Part#

CW30632563
Category

Interface IC, Interface Controller
Package

SOIC-8
Description

RS-485 PROFIBUS RS-485 Transceiver Single Transmitter/Receiver RS-485 8Pin SOIC Tube
Documentation

Datasheet

SN75HVD1176D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN75HVD1176D Specifications

Attribute	Attribute Value

Part Number	SN75HVD1176D
Manufacturer	TI
ChipWorker Part#	CW30632563
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.75V (min)
Supply Current	4 mA
Number of Positions	8 Position
Data Rate	40.0 Mbps
Drivers Per Package	1
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Product Description

The SN75HVD1176D is a half-duplex Differential Transceiver optimized for use in PROFIBUS (EN 50170) applications. The driver output differential voltage exceeds the PROFIBUS requirements of 2.1V with a 54R load. A signalling rate of up to 40Mbps allows technology growth to high data-transfer speeds. The low bus capacitance provides low signal distortion. The device meets or exceeds the requirements of ANSI standard TIA/EIA-485-A (RS-485) for differential data transmission across twisted-pair networks. The driver outputs and receiver inputs are tied together to form a half-duplex bus port with one-fifth unit load, which allows up to 160 nodes on a single bus. The receiver output stays at logic high when the bus lines are shorted, left open or when no driver is active. The driver outputs are in high impedance when the supply voltage is below 2.5V to prevent bus disturbance during power cycling or during live insertion to the bus.
Failsafe receiver (bus open, bus shorted and bus idle)
Low skew during output transitions and driver enabling and disabling
Short-circuit current limit
Hot swap capable
Thermal shutdown protection
Up to 160 transceivers on a bus
ESD protection exceeds ±10kV HBM
Common-mode rejection up to 50MHz
10pF Maximum low bus capacitance
Green product and no Sb/Br
