SN75LBC176 - TI

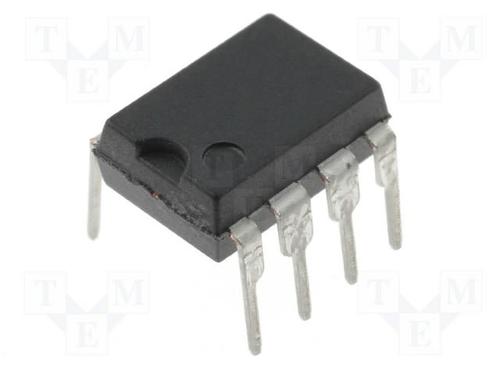

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN75LBC176
Manufacturer

TI
ChipWorker Part#

CW63957575
Package

1
Description

Line transmitter-receiver; RS485; 5VDC; DIP8
Documentation

Datasheet

SN75LBC176 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN75LBC176 Specifications

Attribute	Attribute Value

Part Number	SN75LBC176
Manufacturer	TI
ChipWorker Part#	CW63957575
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	1
Number of Channels	1 Channel
Supply Voltage	5 VDC
	expand all
Product Lifecycle Status
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The SN55LBC176, SN65LBC176, SN65LBC176Q, and SN75LBC176 differential bus transceivers are monolithic, integrated circuits designed for bidirectional data communication on multipoint bus-transmission lines. They are designed for balanced transmission lines and meet ANSI Standard TIA/EIA-485-A (RS-485) and ISO 8482:1987(E).
The SN55LBC176, SN65LBC176, SN65LBC176Q, and SN75LBC176 combine a 3-state, differential line driver and a differential input line receiver, both of which operate from a single 5-V power supply. The driver and receiver have active-high and active-low enables, respectively, which can externally connect together to function as a direction control. The driver differential outputs and the receiver differential inputs connect internally to form a differential input/output (I/O) bus port that is designed to offer minimum loading to the bus whenever the driver is disabled or VCC = 0. This port features wide positive and negative common-mode voltage ranges, making the device suitable for party-line applications. Very low device supply current can be achieved by disabling the driver and the receiver.
These transceivers are suitable for ANSI Standard TIA/EIA-485 (RS-485) and ISO 8482 applications to the extent that they are specified in the operating conditions and characteristics section of this data sheet. Certain limits contained in TIA/EIA-485-A and ISO 8482:1987 (E) are not met or cannot be tested over the entire military temperature range.
The SN55LBC176 is characterized for operation from 55°C to 125°C. The SN65LBC176 is characterized for operation from 40°C to 85°C, and the SN65LBC176Q is characterized for operation from 40°C to 125°C. The SN75LBC176 is characterized for operation from 0°C to 70°C.
Bidirectional Transceiver
Meets or Exceeds the Requirements of ANSI Standard TIA/EIA.485.A and
ISO 8482:1987(E)
High-Speed Low-Power LinBiCMOS™ Circuitry
Designed for High-Speed Operation in Both Serial and Parallel Applications
Low Skew
Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments
Very Low Disabled Supply Current . . . 200 µA Maximum
Wide Positive and Negative Input/Output Bus Voltage Ranges
Thermal-Shutdown Protection
Driver Positive-and Negative-Current Limiting
Open-Circuit Failsafe Receiver Design
Receiver Input Sensitivity . . . ±200 mV Max
Receiver Input Hysteresis . . . 50 mV Typ
Operates From a Single 5-V Supply
Glitch-Free Power-Up and Power-Down Protection
Available in Q-Temp Automotive HighRel Automotive ApplicationsConfiguration
Control / Print Support Qualification to Automotive Standards
LinBiCMOS and LinASIC are trademarks of Texas Instruments Incorporated.
