SN75LBC184P - TI

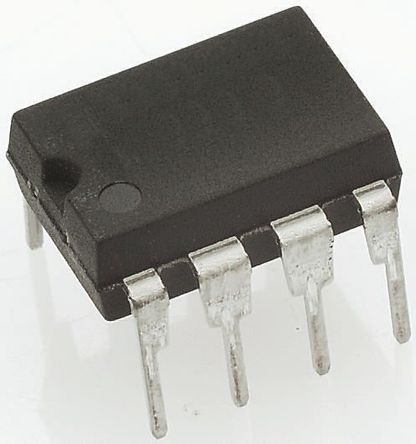

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SN75LBC184P
Manufacturer

TI
ChipWorker Part#

CW6293407
Category

Interface IC, Interface Controller
Package

PDIP-8
Description

RS-485 Transient Voltage Suppression Differential Transceiver Single Transmitter/Receiver RS-485 8Pin PDIP Tube
Documentation

Datasheet

SN75LBC184P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SN75LBC184P Specifications

Attribute	Attribute Value

Part Number	SN75LBC184P
Manufacturer	TI
ChipWorker Part#	CW6293407
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.75V (min)
Supply Current	25 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Data Rate	250 kbps
Drivers Per Package	1
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	expand all
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The SN75LBC184P is a Differential Data Line Transceiver in the trade-standard footprint of the SN75176 with built-in protection against high-energy noise transients. This feature provides a substantial increase in reliability for better immunity to noise transients coupled to the data cable over most existing devices. Use of these circuits provides a reliable low-cost direct-coupled (with no isolation transformer) data line interface without requiring any external components. The SN75LBC184P can withstand overvoltage transients of 400W peak (typical). The conventional combination wave called out in IEC 61000-4-5 simulates the overvoltage transient and models a unidirectional surge caused by overvoltage from switching and secondary lightning transients. ESD protection for bus terminals exceeds, ±30kV IEC 61000-4-2 contact discharge, ±15kV IEC 61000-4-2 air-gap discharge and ±15kV EIA/JEDEC human body model.
Integrated transient voltage suppression
Circuit damage protection of 400W peak (typical) per IEC 61000-4-5
Controlled driver output-voltage slew rates allow longer cable stub lengths
250kbps in electrically noisy environments
Open-circuit fail-safe receiver design
1/4 Unit load allows for 128 devices connected on bus
Thermal shutdown protection
Power-up and power-down glitch protection
Each transceiver meets/exceeds requirements of TIA/EIA-485 (RS-485) & ISO/IEC 8482:1993(E) standards
300µA Maximum low disabled supply current
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
