SPP11N80C3XKSA1 - Infineon

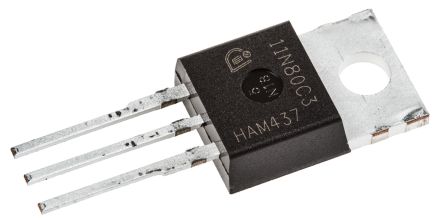

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SPP11N80C3XKSA1
Manufacturer

Infineon
ChipWorker Part#

CW6541057
Category

High Voltage MOS Transistor
Package

TO-220-3
Description

TO-220AB N-CH 800V 11A
Documentation

Datasheet

SPP11N80C3XKSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SPP11N80C3XKSA1 Specifications

Attribute	Attribute Value

Part Number	SPP11N80C3XKSA1
Manufacturer	Infineon
ChipWorker Part#	CW6541057
Category	High Voltage MOS Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	800 V
Current Rating	11.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.39 Ω
Polarity	N-Channel
Power Dissipation	156 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	800 V
Continuous Drain Current (Ids)	11.0 A
Rise Time	15 ns
Input Capacitance (Ciss)	1600pF @100V(Vds)
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	156W (Tc)
	expand all
Size-Length	10.36 mm
Size-Width	4.57 mm
Size-Height	9.45 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The SPP11N80C3 is a 800V CoolMOS™ N-channel enhancement-mode Power MOSFET features ultra low gate charge. It is designed for high DC bulk voltage and switching Applications.
