SS495A ,Hall Effect Sensor - Honeywell

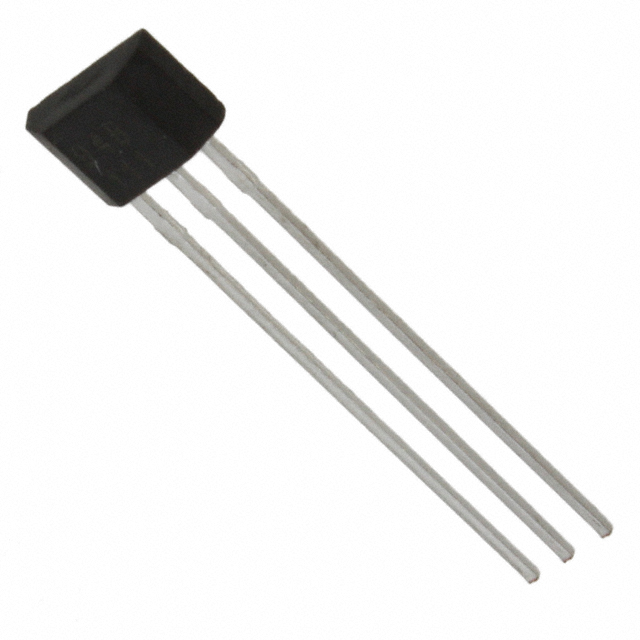

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

204 points

Part No

SS495A
Manufacturer

Honeywell
ChipWorker Part#

CW506640
Category

Hall Effect Sensor
Package

TO-226-3
Description

Honeywell Hall-effect Linear Sensor ICs: SS490 Series, Standard miniature ratiometric linear Hall-effect sensor IC, 3.125mV/G at 5V, Flat TO-92 package, Straight leads 14,99mm [0.59in] long, Available in bulk pack of 1000 units per bag
Documentation

Datasheet
Ships from

Moscow
Наличие

262 pcs In Stock
Estimated Price

$ 0.55

Buy SS495A

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

SS495A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

SS495A Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	SS495A
Manufacturer	Honeywell
ChipWorker Part#	CW506640
Category	Hall Effect Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Contacts	3 Contact
Supply Voltage (DC)	5.00 V
Operating Voltage	4.5V ~ 10.5V
Output Voltage	0.4 VDC
Output Current	600 µA
Supply Current	8.7 mA
Number of Positions	3 Position
Input Current	7 mA
Switching Current	1.5 mA
Output Current (Max)	10 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 10.5V
Supply Voltage (Max)	10.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	4.06 mm
Size-Width	3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8542390000
ECCN Code	EAR99
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The SS495A is a high performance, miniature ratiometric linear (MRL) solid state hall effect sensor in 3 pin TO-92 package. This small and versatile sensor is operated by magnetic field from permanent magnet or an electromagnet. The ratiometric output voltage is set by supply voltage and varies in proportion to strength of magnetic field. The integrated circuitry provides increased temperature stability and sensitivity. Laser trimmed thin film resistors provide high accuracy (null to ±3%, sensitivity up to ±3%) and temperature compensation. The quad hall sensing element minimizes the effects of mechanical or thermal stress on output. The positive temperature coefficient of sensitivity (+0.02%/°C typical) helps compensate for negative temperature coefficients of low cost magnets providing robust design over wide temperature range.
Power consumption of 7mA at 5VDC for energy efficiency
Single current sinking or current sourcing output
Linear output for circuit design flexibility
Supply current of 8.7mA at 5VDC
Rail to rail operation provides more useable signal for higher accuracy
Operating temperature range from -40°C to 150°C
Supply voltage range from 4.5VDC to 10.5VDC
Sensitivity of 3.125mV/G
Linearity (% of span) of 1.0%
Response time of 3µs
Do not use this product as safety, emergency stop devices or in any other application where failure of product could result in personal injury.
