SSA36 - ON Semiconductor

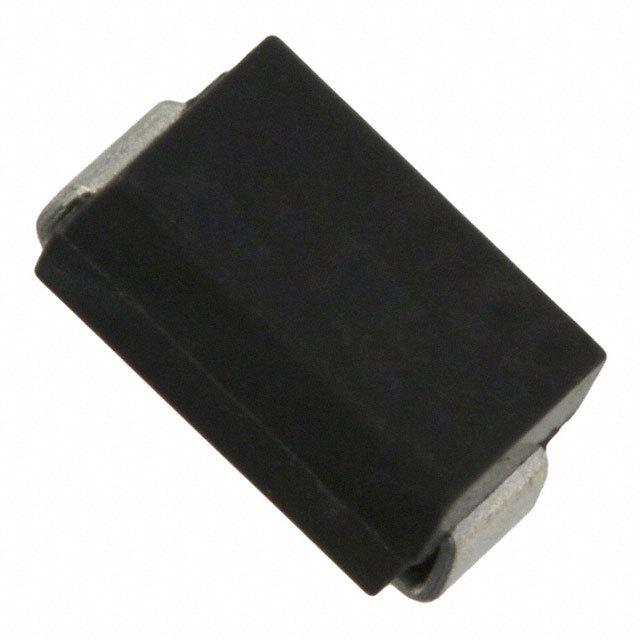

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

SSA36
Manufacturer

ON Semiconductor
ChipWorker Part#

CW81350423
Package

DO-214AC
Description

DIODE SCHOTTKY 3A 60V SMA
Documentation

Datasheet

SSA36 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

SSA36 Specifications

Attribute	Attribute Value

Part Number	SSA36
Manufacturer	ON Semiconductor
ChipWorker Part#	CW81350423
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Number of Positions	2 Position
Forward Voltage	750mV @3A
Reverse recovery time	10.74 ns
Forward Current	3 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	750 mV
Forward Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

Diode Schottky 60V 3A Surface Mount DO-214AC (SMA)
