ST202EBTR - ST Microelectronics

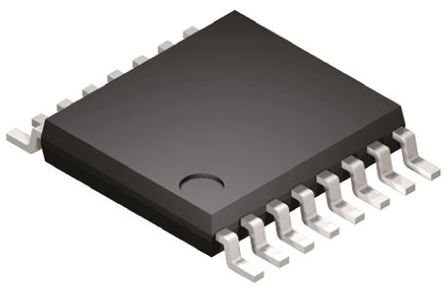

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ST202EBTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW27289690
Category

Interface IC, Interface Controller
Package

TSSOP-16
Description

IC TXRX RS232 5V ESD 16-TSSOP
Documentation

Datasheet

ST202EBTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ST202EBTR Specifications

Attribute	Attribute Value

Part Number	ST202EBTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW27289690
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	5.00 V
Supply Current	10 mA
Number of Positions	16 Position
Data Rate	230 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Description
The ST202E/ST232E are a 2 driver 2 receiver devices designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ± 15 kV electrostatic discharge (ESD) shocks. The drivers meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 230kbps, when loaded in accordance with the EIA/TIA-232E specification. The ST202E/232E use a single 5 V supply voltage.
Features
■ ESD protection for RS-232 I/O pins:
■ ± 15 kV human body model
■ Guaranteed 230 kbps date rate
■ Guaranteed slew rate range 3 to 30 V/ms
■ Operate from a single 5 V power supply
