ST715PU33R - ST Microelectronics

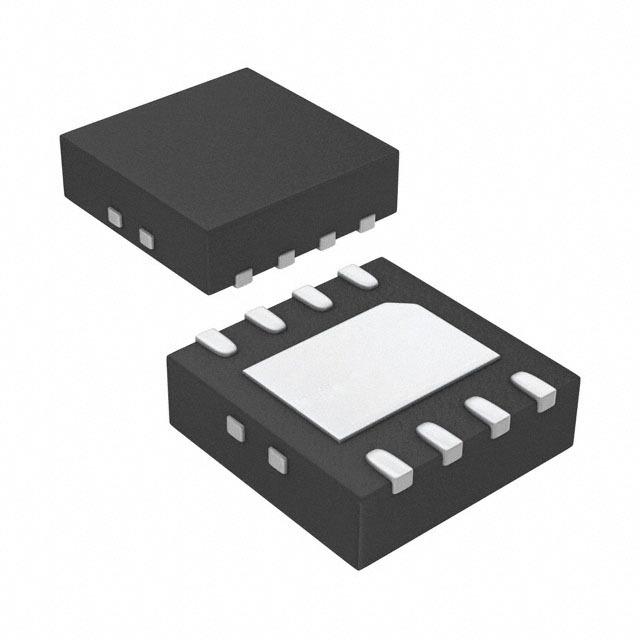

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ST715PU33R
Manufacturer

ST Microelectronics
ChipWorker Part#

CW31835503
Category

Voltage Regulator
Package

DFN-8
Description

ST715 Series 85mA 3.3V Fixed Output SMT LDO Linear Regulator - DFN-8
Documentation

Datasheet

ST715PU33R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ST715PU33R Specifications

Attribute	Attribute Value

Part Number	ST715PU33R
Manufacturer	ST Microelectronics
ChipWorker Part#	CW31835503
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	85 mA
Supply Current	5.5µA ~ 6.5µA
Number of Positions	8 Position
Power Dissipation	2 W
Quiescent Current	6.5 µA
voltage rating	500 mV
Input Voltage (Max)	24 V
Input Voltage (Min)	3.8 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.085 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2000 mW
Accuracy	±5 %
Input Voltage	24 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Never worry about components not turning off and on due to lack of voltage with this LDO ST715PU33R linear regulator from STMicroelectronics. This device has a maximum power dissipation of 5000 mW. Its typical dropout voltage at current is 0.5@85mA V. This voltage regulation device"s single output can produce a current up to 0.085 A. This will operate at a minimum voltage of 3.8 V and a maximum voltage of 24 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 0.003%/mA and line regulation of 0.004%/V. Its maximum power dissipation is 5000 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 1@85mA V. Its polarity is positive.
