STF7LN80K5 - ST Microelectronics

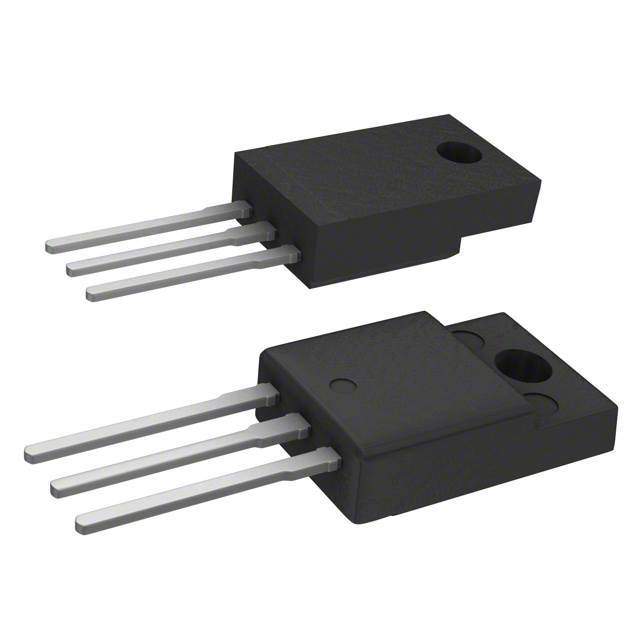

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STF7LN80K5
Manufacturer

ST Microelectronics
ChipWorker Part#

CW58835945
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 800V 5A
Documentation

Datasheet

STF7LN80K5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STF7LN80K5 Specifications

Attribute	Attribute Value

Part Number	STF7LN80K5
Manufacturer	ST Microelectronics
ChipWorker Part#	CW58835945
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Polarity	N-CH
Power Dissipation	25 W
Drain to Source Voltage (Vds)	800 V
Continuous Drain Current (Ids)	5A
Rise Time	6.7 ns
Input Capacitance (Ciss)	270pF @100V(Vds)
Fall Time	17.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	25000 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

N-Channel 800V 5A (Tc) 25W (Tc) Through Hole TO-220FP
