STL18N65M5 - ST Microelectronics

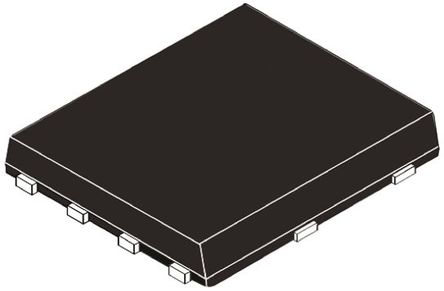

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STL18N65M5
Manufacturer

ST Microelectronics
ChipWorker Part#

CW40326279
Category

MOSFET, MOSFET Transistor
Package

PowerFLAT-5x6-HV-8
Description

Trans MOSFET N-CH 710V 15A 8Pin Power Flat T/R
Documentation

Datasheet

STL18N65M5 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STL18N65M5 Specifications

Attribute	Attribute Value

Part Number	STL18N65M5
Manufacturer	ST Microelectronics
ChipWorker Part#	CW40326279
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerFLAT-5x6-HV-8
Number of Channels	2 Channel
Power Dissipation	57 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	650 V
Rise Time	7 ns
Input Capacitance (Ciss)	1240pF @100V(Vds)
Input Power (Max)	57 W
Fall Time	11 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	57W (Tc)
	expand all
Size-Length	5.4 mm
Size-Width	6.35 mm
Size-Height	1 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Use STMicroelectronics" STL18N65M5 power MOSFET to switch quickly between different electronic signals with ease. Its maximum power dissipation is 57000 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. This device is made with mdmesh technology.
