STL7NM60N - ST Microelectronics

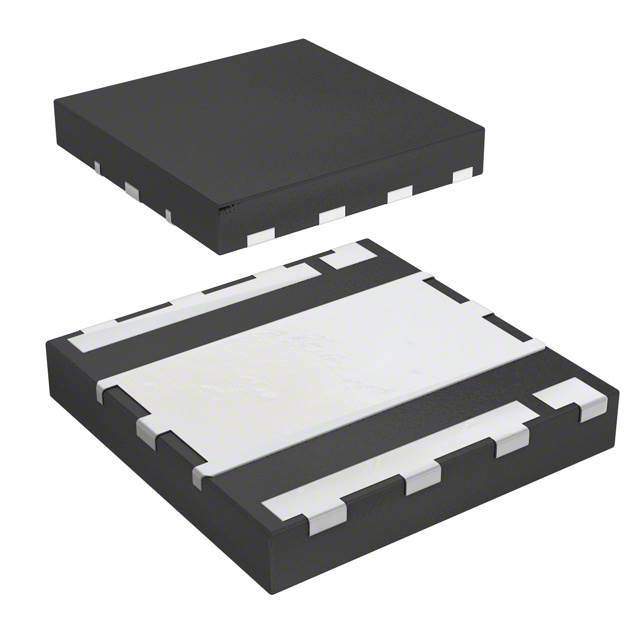

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STL7NM60N
Manufacturer

ST Microelectronics
ChipWorker Part#

CW127956639
Category

MOSFET, MOSFET Transistor
Package

PowerFLAT-14
Description

Power N-CH 600V 5.8A
Documentation

Datasheet

STL7NM60N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STL7NM60N Specifications

Attribute	Attribute Value

Part Number	STL7NM60N
Manufacturer	ST Microelectronics
ChipWorker Part#	CW127956639
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	PowerFLAT-14
Polarity	N-CH
Power Dissipation	68 W
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	5.8A
Rise Time	10 ns
Input Capacitance (Ciss)	363pF @50V(Vds)
Input Power (Max)	68 W
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	68W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 600V 5.8A (Tc) 68W (Tc) Surface Mount 14-PowerFLAT™ (5x5)
