STL8DN6LF6AG - ST Microelectronics

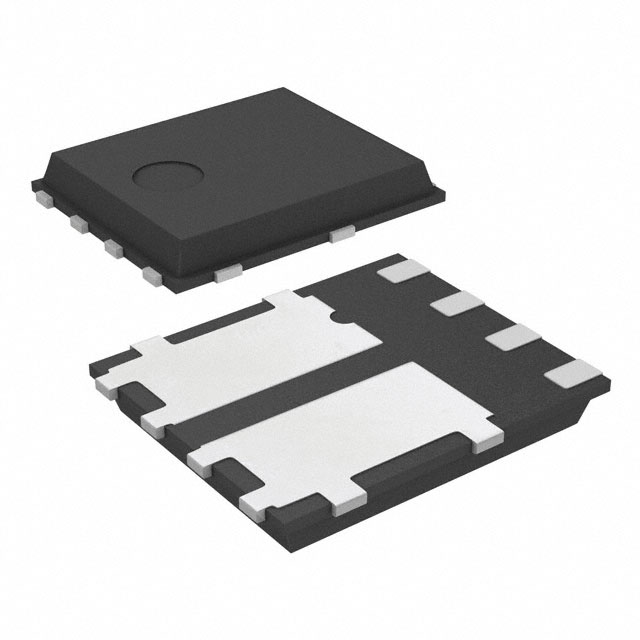

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STL8DN6LF6AG
Manufacturer

ST Microelectronics
ChipWorker Part#

CW57631737
Category

MOSFET, MOSFET Transistor
Package

PowerFLAT-8
Description

Trans MOSFET N-CH 60V 32A 8Pin Power Flat T/R
Documentation

Datasheet

STL8DN6LF6AG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STL8DN6LF6AG Specifications

Attribute	Attribute Value

Part Number	STL8DN6LF6AG
Manufacturer	ST Microelectronics
ChipWorker Part#	CW57631737
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerFLAT-8
Power Dissipation	4.8W (Ta), 55W (Tc)
Drain to Source Voltage (Vds)	60 V
Rise Time	20 ns
Input Capacitance (Ciss)	1340pF @25V(Vds)
Fall Time	7 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	4.8W (Ta), 55W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

Mosfet Array 2 N-Channel (Dual) 32A (Tc) Surface Mount PowerFlat™ (5x6)
