STM32F103CBT6TR - ST Microelectronics

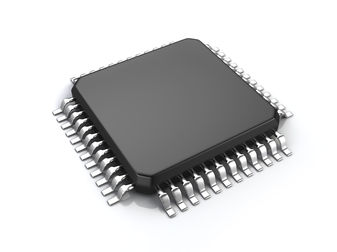

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM32F103CBT6TR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW2485117
Category

Microcontroller, MCU IC
Package

LQFP-48
Description

MCU 32Bit ARM Cortex M3 RISC 128KB Flash 2.5V/3.3V 48Pin LQFP T/R
Documentation

Datasheet

STM32F103CBT6TR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STM32F103CBT6TR Specifications

Attribute	Attribute Value

Part Number	STM32F103CBT6TR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW2485117
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Frequency	72 MHz
Number of Positions	48 Position
RAM Memory Size	20K x 8
Number of Bits	32 Bit
Power Dissipation	363 mW
Number of Inputs and Outputs	37 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
Power Dissipation (Max)	363 mW
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	3A991A2

Product Description

ARM® Cortex®-M3 STM32F1 Microcontroller IC 32-Bit 72MHz 128KB (128K x 8) FLASH
