STM32F746IEK6 - ST Microelectronics

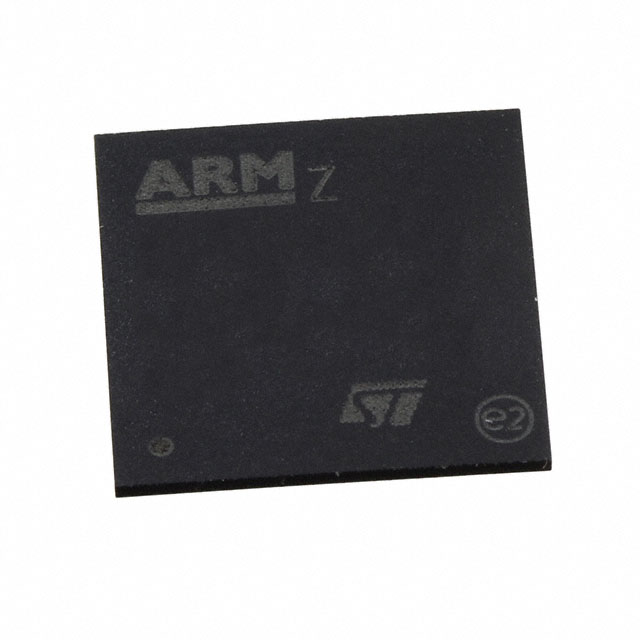

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM32F746IEK6
Manufacturer

ST Microelectronics
ChipWorker Part#

CW51909768
Category

32-Bit Microcontroller IC
Package

UFBGA-100
Description

MCU 32Bit ARM Cortex M7 RISC 512KB Flash 1.8V/2.5V/3.3V 201Pin UFBGA Tray
Documentation

Datasheet

STM32F746IEK6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STM32F746IEK6 Specifications

Attribute	Attribute Value

Part Number	STM32F746IEK6
Manufacturer	ST Microelectronics
ChipWorker Part#	CW51909768
Category	32-Bit Microcontroller IC
Documentation	Datasheet
Number of Pins	176 Pin
Case/Package	UFBGA-100
Frequency	216 MHz
Number of Positions	176 Position
Clock Speed	216 MHz
RAM Memory Size	340 KB
Number of Bits	32 Bit
Number of ADCs	3 ADC
Number of Inputs and Outputs	140 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	513 mW
Number of DACs	1 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17

Product Description

The STM32F746IEK6 is a STM32F7 series high performance ARM based Cortex-M7 32bit microcontroller in 176 pin UFBGA package. This general purpose microcontroller with FPU, adaptive real time accelerator (ART Accelerator) and L1 cache has 32bit RISC core operating at up to 216MHz frequency. The Cortex-M7 core has single floating point unit (SFPU) precision which supports all ARM single precision data processing instructions and data types. It also implements a full set of DSP instructions and memory protection unit (MPU) which enhances the application security. The STM32F746 microcontroller incorporates high speed embedded memories, 1024bytes of OTP memory, an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, 32bit multi AHB bus matrix and multi layer AXI interconnect supporting internal and external memories access.
512Kbytes of flash memory and 340KB of SRAM (320KB system, 16KB instruction and 4KB backup SRAM)
Ethernet, 6/3 SPI/I2S, 4 I2C, 4/4 USART/UART, USB OTG FS/HS, 2 CAN, 2 SAI, SPDIFRX, SDMMC interfaces
140 I/O ports with interrupt capability
8bit to 14bit parallel camera interface up to 54Mbytes/s
Ten general purpose, two advanced control, two basic and one low power timers
LCD-TFT controller up to XGA resolution with dedicated Chrom-ART accelerator for DMA2D
Three 12bit, 2.4MSPS ADC with 24 channels and 7.2MSPS in triple interleaved mode
Two 12bit D/A converters and 16 stream DMA controller with FIFOs and burst support
Operating voltage from 1.7V to 3.6V
Operating temperature range from -40°C to 85°C
