STM6522AAAADG6F - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM6522AAAADG6F
Manufacturer

ST Microelectronics
ChipWorker Part#

CW80260885
Category

Power Monitor
Package

TDFN-8
Description

Processor Supervisor 8Pin TDFN T/R
Documentation

Datasheet

STM6522AAAADG6F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STM6522AAAADG6F Specifications

Attribute	Attribute Value

Part Number	STM6522AAAADG6F
Manufacturer	ST Microelectronics
ChipWorker Part#	CW80260885
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TDFN-8
Supply Current	2.00 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The Smart Reset™ devices provide a useful feature that ensures that inadvertent short reset push-button closures do not cause system resets as the extended Smart Reset™ delay setup periods are implemented. Once the valid Smart Reset™ input levels and setup delay are met, the device generates an output reset pulse for a fixed timeout period (tREC).
The typical application hookup shows that either a single Smart Reset™ input, or both reset inputs can be connected to the applications interrupt and control both the interrupt pin and the hard reset functions. If the push-button is closed for a short time, the processor is only interrupted. If the system still does not respond properly, holding the push-button(s) for the extended setup time (tSRC) causes a hard reset of the processor. The Smart Reset™ feature helps significantly increase system stability and eliminates the need for a dedicated reset button.
The STM65xx family of Smart Reset™ devices consists of low-current microprocessor reset circuits targeted at applications such as MP3 players, portable navigation or mobile phones, generally any application that requires delayed reset push-button(s) response for improved system stability. The devices in the STM65xx Smart Reset™ family include various combinations of useful features for the targeted applications.

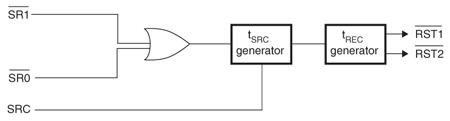

The STM6522 has two combined Smart Reset™ inputs (SR0and SR1) with delayed reset setup time (tSRC) programmed by an external capacitor on the SRC pin.
**Key Features**
Dual Smart Reset™ push-button inputs with capacitor-adjustable extended reset setup delay (tSRC )
No power-on reset
Dual RST output, active-low, open-drain
Fixed Smart Reset™ input logic voltage levels
Broad operating voltage range 1.65 V to 5.5 V, inactive reset output levels valid down to 1.0 V
Low supply current (1.5 μA)
Operating temperature: industrial grade –40 °C to +85 °C
TDFN8 package: 2 mm x 2 mm x 0.75 mm
RoHS compliant
