STM706SM6F - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM706SM6F
Manufacturer

ST Microelectronics
ChipWorker Part#

CW22599493
Category

Power Monitor
Package

SOIC-8
Description

Processor Supervisor 2.93V 1V to 5.5V 8Pin SO N T/R
Documentation

Datasheet

STM706SM6F Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STM706SM6F Specifications

Attribute	Attribute Value

Part Number	STM706SM6F
Manufacturer	ST Microelectronics
ChipWorker Part#	CW22599493
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.50V (max)
Output Voltage	0.3 V
Output Current	20 mA
Supply Current	0.06 mA
Number of Positions	8 Position
Power Dissipation	0.32 W
Threshold Voltage	2.93 V
Reset Threshold Voltage (Min)	2.85 V
Reset Threshold Voltage (Max)	3 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	320 mW
Supply Voltage	3 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

SUMMARY DESCRIPTION

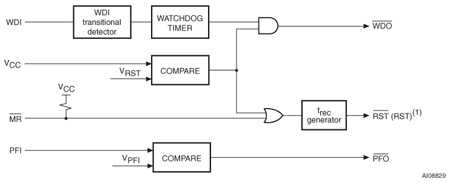

The STM70x Supervisors are self-contained devices which provide microprocessor supervisory
functions. A precision voltage reference and comparator monitors the VCCinput for an out-of-toler
ance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or
high in the case of RST).
FEATURES SUMMARY
■ PRECISION VCCMONITOR
– STM706/708
T: 3.00V ≤VRST ≤3.15V
S: 2.88V ≤VRST ≤3.00V
R; STM706P: 2.59V ≤VRST ≤2.70V
■ RST AND RSTOUTPUTS
■ 200ms (TYP) trec
■ WATCHDOG TIMER - 1.6sec (TYP)
■ MANUAL RESET INPUT (MR)
■ POWER-FAIL COMPARATOR (PFI/PFO)
■ LOW SUPPLY CURRENT - 40µA (TYP)
■ GUARANTEED RST(RST) ASSERTION DOWN TO VCC= 1.0V
■ OPERATING TEMPERATURE:
–40°C to 85°C (Industrial Grade)
