STM8L101F3U6TR - ST Microelectronics

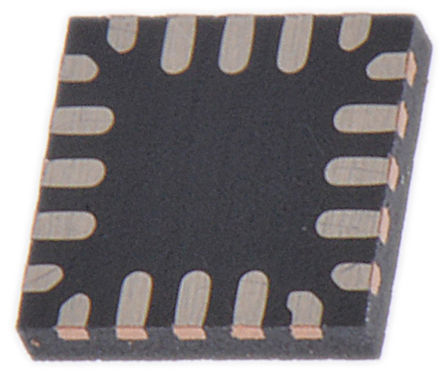

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STM8L101F3U6TR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW11920892
Category

Microcontroller, MCU IC
Package

UFQFN-20
Description

MCU 8Bit STM8 CISC 8KB ROM 1.8V/2.5V 20Pin UFQFPN T/R
Documentation

Datasheet

STM8L101F3U6TR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

STM8L101F3U6TR Specifications

Attribute	Attribute Value

Part Number	STM8L101F3U6TR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW11920892
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	UFQFN-20
Frequency	16 MHz
Number of Positions	20 Position
RAM Memory Size	1.5K x 8
Power Dissipation	196 mW
Number of Inputs and Outputs	18 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	196 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The STM8L101x1 STM8L101x2 STM8L101x3 low-power family features the enhanced STM8 CPU core providing increased processing power (up to 16 MIPS at 16 MHz) while maintaining the advantages of a CISC architecture with improved code density, a 24-bit linear addressing space and an optimized architecture for low power operations.
The family includes an integrated debug module with a hardware interface (SWIM) which allows non-intrusive in-application debugging and ultrafast Flash programming.
All STM8L101xx microcontrollers feature low power low-voltage single-supply program Flash memory. The 8-Kbyte devices embed data EEPROM.
The STM8L101xx low power family is based on a generic set of state-of-the-art peripherals. The modular design of the peripheral set allows the same peripherals to be found in different ST microcontroller families including 32-bit families. This makes any transition to a different family very easy, and simplified even more by the use of a common set of development tools.
All STM8L low power products are based on the same architecture with the same memory mapping and a coherent pinout.
**Key Features**
Main microcontroller features
Supply voltage range 1.65 V to 3.6 V
Low power consumption (Halt: 0.3 µA, Active-halt: 0.8 µA, Dynamic Run: 150 µA/MHz)
STM8 Core with up to 16 CISC MIPS throughput
Temp. range: -40 to 85 °C and 125 °C
Memories
Up to 8 Kbytes of Flash program including up to 2 Kbytes of data EEPROM
Error correction code (ECC)
Flexible write and read protection modes
In-application and in-circuit programming
Data EEPROM capability
1.5 Kbytes of static RAM
Clock management
Internal 16 MHz RC with fast wakeup time (typ. 4 µs)
Internal low consumption 38 kHz RC driving both the IWDG and the AWU
Reset and supply management
Ultra-low power POR/PDR
Three low-power modes: Wait, Active-halt, Halt
Interrupt management
Nested interrupt controller with software priority control
Up to 29 external interrupt sources
I/Os
Up to 30 I/Os, all mappable on external interrupt vectors
I/Os with programmable input pull-ups, high sink/source capability and one LED driver infrared output
Peripherals
Two 16-bit general purpose timers (TIM2 and TIM3) with up and down counter and 2 channels (used as IC, OC, PWM)
One 8-bit timer (TIM4) with 7-bit prescaler
Infrared remote control (IR)
Independent watchdog
Auto-wakeup unit
Beeper timer with 1, 2 or 4 kHz frequencies
SPI synchronous serial interface
Fast I2C Multimaster/slave 400 kHz
USART with fractional baud rate generator
2 comparators with 4 inputs each
Development support
Hardware single wire interface module (SWIM) for fast on-chip programming and non intrusive debugging
In-circuit emulation (ICE)
96-bit unique ID
