STP150NF55 - ST Microelectronics

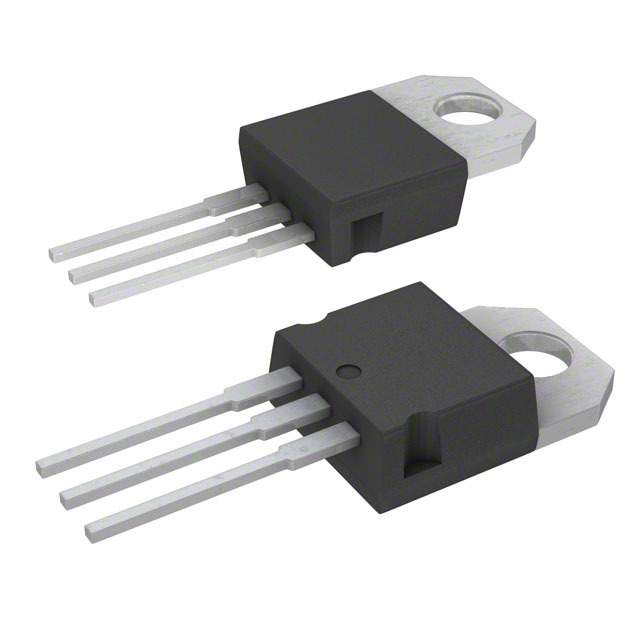

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STP150NF55
Manufacturer

ST Microelectronics
ChipWorker Part#

CW69177141
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

N-CHANNEL 55V - 0.005Ω -120A D2PAK/TO-220/TO-247 STRIPFET II POWER MOSFET
Documentation

Datasheet

STP150NF55 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STP150NF55 Specifications

Attribute	Attribute Value

Part Number	STP150NF55
Manufacturer	ST Microelectronics
ChipWorker Part#	CW69177141
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Dissipation	300 W
Drain to Source Voltage (Vds)	55 V
Rise Time	180 ns
Input Capacitance (Ciss)	4400pF @25V(Vds)
Input Power (Max)	300 W
Fall Time	80 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 55V 120A (Tc) 300W (Tc) Through Hole TO-220AB
