STP9NK50Z - ST Microelectronics

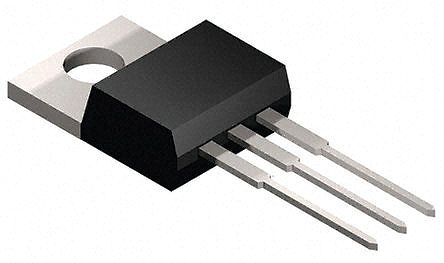

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STP9NK50Z
Manufacturer

ST Microelectronics
ChipWorker Part#

CW4670728
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220 N-CH 500V 7.2A
Documentation

Datasheet

STP9NK50Z Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STP9NK50Z Specifications

Attribute	Attribute Value

Part Number	STP9NK50Z
Manufacturer	ST Microelectronics
ChipWorker Part#	CW4670728
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	500 V
Current Rating	7.20 A
Power Rating	110 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.72 Ω
Polarity	N-Channel
Power Dissipation	110 W
Threshold Voltage	3.75 V
Drain to Source Voltage (Vds)	500 V
Breakdown Voltage (Drain to Source)	500 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	7.20 A
Rise Time	20 ns
Input Capacitance (Ciss)	910pF @25V(Vds)
Input Power (Max)	110 W
Fall Time	22 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	110W (Tc)
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The STP9NK50Z is a SuperMESH™ N-channel Zener-protected MOSFET obtained through an extreme optimization of well-established strip-based PowerMESH™ layout. In addition to pushing ON-resistance significantly down, special care is taken to ensure a very good dV/dt capability for the most demanding applications.
0.72R RDS (ON)
Extremely high dV/dt capability
100% Avalanche tested
Gate charge minimized
Very low intrinsic capacitances
Very good manufacturing repeatability
-55 to 150°C Operating junction temperature range
