STPS1L30M - ST Microelectronics

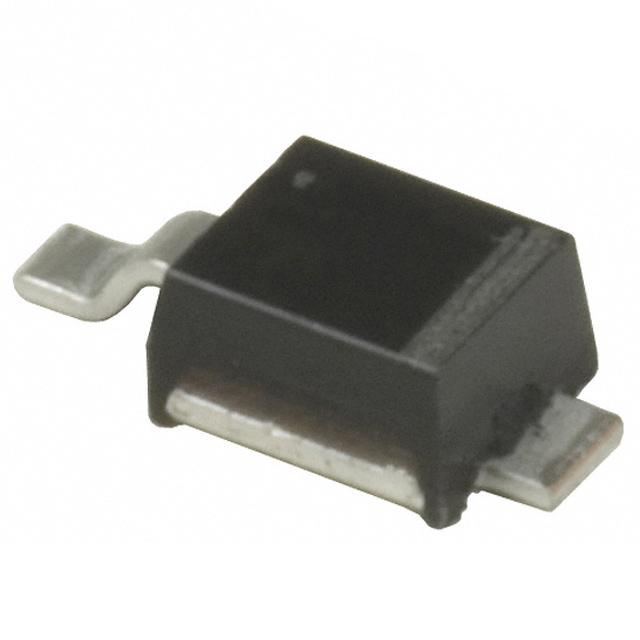

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPS1L30M
Manufacturer

ST Microelectronics
ChipWorker Part#

CW23602017
Category

TVS Diode
Package

DO-216AA
Description

Diode Schottky 30V 1A 2Pin(1+Tab) ST Mite T/R
Documentation

Datasheet

STPS1L30M Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STPS1L30M Specifications

Attribute	Attribute Value

Part Number	STPS1L30M
Manufacturer	ST Microelectronics
ChipWorker Part#	CW23602017
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Voltage Rating (DC)	30.0 V
Current Rating	1.00 A
Output Current	≤1.00 A
Number of Positions	2 Position
Forward Voltage	390mV @1A
Polarity	Standard
Thermal Resistance	250℃/W (RθJL)
Forward Current	1000 mA
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	390mV @1A
Forward Current (Max)	1000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	expand all
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

•VERY SMALL CONDUCTION LOSSES •NEGLIGIBLE SWITCHING LOSSES •EXTREMELY FAST SWITCHING •LOW FORWARD VOLTAGE DROP FOR •HIGHER EFFICIENCY & EXTENDED •BATTERY LIFE •LOW THERMAL RESISTANCE •AVALANCHE CAPABILITY SPECIFIED
