STPS1L40AY - ST Microelectronics

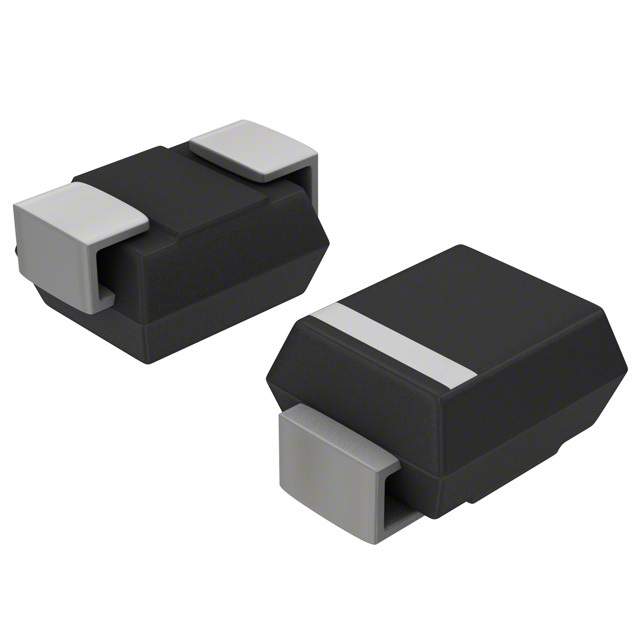

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPS1L40AY
Manufacturer

ST Microelectronics
ChipWorker Part#

CW27294044
Category

TVS Diode
Package

DO-214AC
Description

DIODE, SCHOTTKY, 1A, 40V, SMA; Diode Type: Schottky; Diode Configuration: Single;
Documentation

Datasheet

STPS1L40AY Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STPS1L40AY Specifications

Attribute	Attribute Value

Part Number	STPS1L40AY
Manufacturer	ST Microelectronics
ChipWorker Part#	CW27294044
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Forward Voltage	500mV @1A
Forward Current	1 A
Max Forward Surge Current (Ifsm)	60 A
Maximum Forward Voltage (Max)	420 mV
Forward Current (Max)	1000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Diode Schottky 40V 1A Surface Mount SMA (DO-214AC)
