STPS5L40 - ST Microelectronics

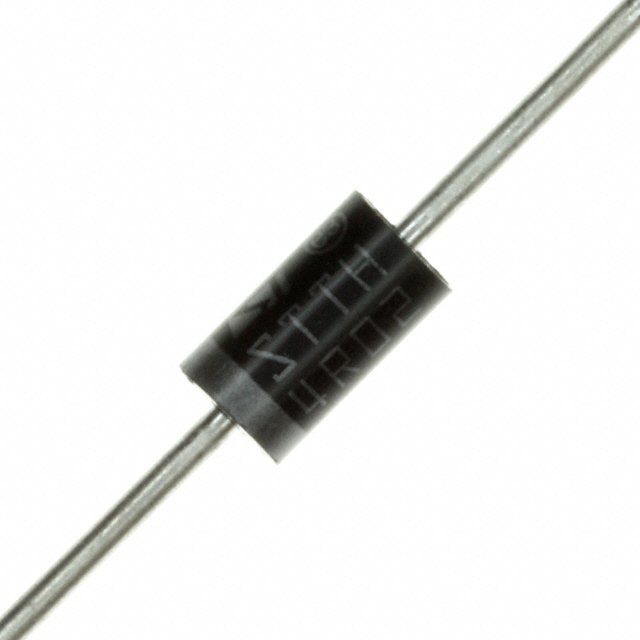

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

STPS5L40
Manufacturer

ST Microelectronics
ChipWorker Part#

CW46683837
Category

Schottky Diode
Package

DO-201AD
Description

Diode Schottky 40V 5A 2Pin DO-201AD T/R
Documentation

Datasheet

STPS5L40 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

STPS5L40 Specifications

Attribute	Attribute Value

Part Number	STPS5L40
Manufacturer	ST Microelectronics
ChipWorker Part#	CW46683837
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	40.0 V
Current Rating	5.00 A
Output Current	≤5.00 A
Number of Positions	2 Position
Forward Voltage	500mV @5A
Polarity	Standard
Forward Current	5000 mA
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	500mV @5A
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	expand all
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Diode Schottky 40V 5A Through Hole DO-201AD
